ADPBCRMA7124S3N3

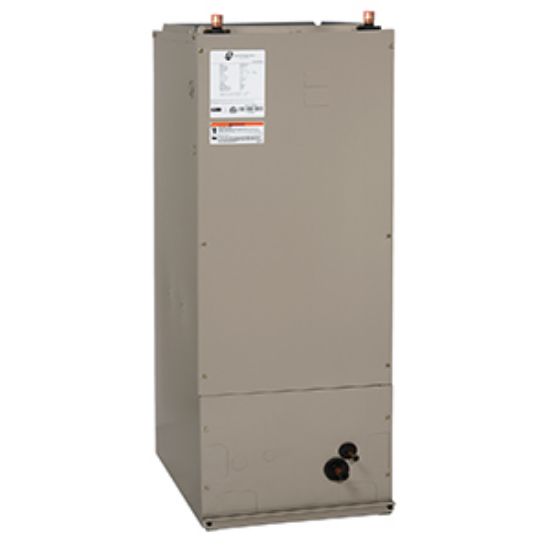

ADP BCRMA7124S3N3 Multi-Position Air Handler, 24000 btu/hr, 800 cfm, 1/3 hp, 120V at 60Hz, 1 PH, 0.57A, 3 Speed Fan Motor

Manufacturer: ADP

$0.00

Qty:

Multi-Position Air Handler, BCR Series, 22 in. Width, 44 in. Height, Painted Steel, AMP: 0.57A, BTU: 24000 btu/hr, Depth: 15 in., Horsepower: 1/3 hp, Liquid Line (OD): 3/8 in., 800 cfm Maximum, Phase: 1 PH, R-410A Refrigerant, Suction Line (OD): 3/4 in., 120V Volts, 60Hz Frequency Rating, 9 x 6 in. Blower Size

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	22 in.
Height	44 in.
Material	Painted Steel
AMP	0.57A
Blower Size	9 x 6 in.
BTU	24000 btu/hr
CFM	800 cfm
Depth	15 in.
Frequency Rating	60Hz
Horsepower	1/3 hp
Liquid Line (OD)	3/8 in.
Phase	1 PH
Refrigerant	R-410A
Suction Line (OD)	3/4 in.
Volts	120V
