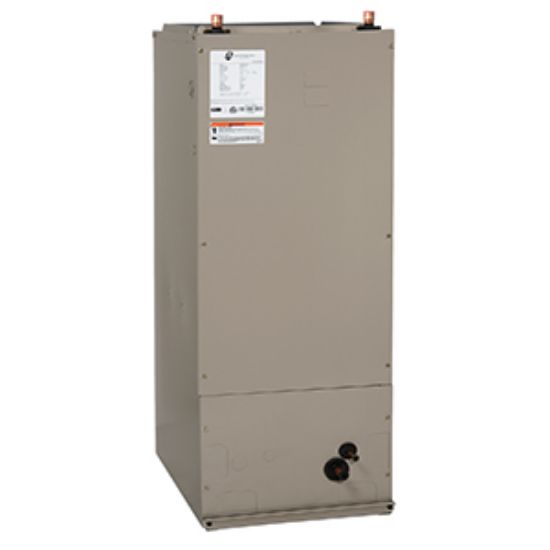

Picture of BCRMB6136S3N3 A/H W/DX & HW COIL 120V

BCRMB6136S3N3 A/H W/DX & HW COIL 120V

ADP BCRMB6136S3N3 BCR Series 3 Tons 36k btu/hr 1/3 hp 120V Single Phase Multi-Position Stainless Steel Air Handler
Manufacturer: ADP
$0.00
Air Handler, B Series, 18-1/2 in. Width, 48 in. Height, Material: Painted Steel, AMP: 0.57A, 36000 btu/hr BTU, Multi-Position Configuration, Depth: 22 in., Fan Speeds: 3, Air Filter, Horsepower: 1/3 hp, Liquid Line (OD): 3/8 in., 1200 cfm Maximum, Phase: 1 PH, R-410A Refrigerant, Suction Line (OD): 3/4 in., 120V Volts, 60Hz Frequency Rating, 0.067 in. Piston, Blower size: 10 x 8 in.
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 0.57
CFM 1200
Configuration Multi-Position
Depth 22 in.
Height 48 in.
Horsepower 1/3 hp
Liquid Line (OD) 3/8 in.
Material Stainless Steel
MBH 36
Suction Line (OD) 3/4 in.
Volts 120V
Width 18-1/2 in.
Application Residential
Product Type Air Handlers
Coil Type Slab
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Style Name BCR Series
Tonnage 3 Tons
Weight 140.00 lb
Origin USA
Specifications - ETL Listed Yes
BTU (btu/hr) 68000
Refrigerant R-410A
Phase Single Phase
