ADPBCRMC1148S001

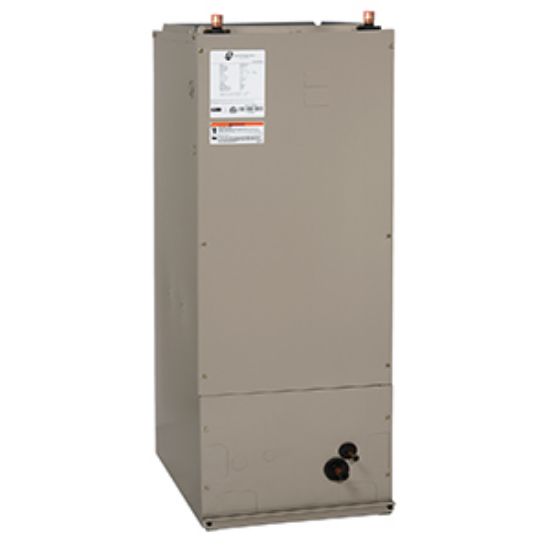

ADP BCRMC1148S001 B-Series R410A 13 SEER Air Handler 3.5 - 4 Tonnes, 1600 cfm, 240V, 48000 btu/hr

Manufacturer: ADP

$0.00

Qty:

Air Handler, B Series, 20 in. Width, 49 in. Height, Material: Painted Steel, AMP: 0.28A, 48000 btu/hr BTU, Multi-Position Configuration, Depth: 26 in., Fan Speeds: 3, Air Filter, Horsepower: 1/2 hp, Liquid Line (OD): 3/8 in., 1600 cfm Maximum, Phase: 1 PH, R-410A Refrigerant, Suction Line (OD): 7/8 in., 208/240V Volts, 60Hz Frequency Rating, 0.076 in. Piston, Blower size: 11 x 8 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	20 in.
Height	49 in.
Material	Painted Steel
AMP	0.28A
Blower Size	11 x 8 in.
BTU	48000 btu/hr
CFM	1600 cfm
Configuration	Multi-Position
Depth	26 in.
Filter Type	Air
Frequency Rating	60Hz
Horsepower	1/2 hp
Liquid Line (OD)	3/8 in.
Number of Speeds	3
Phase	1 PH
Piston Size	0.076 in.
Refrigerant	R-410A
Suction Line (OD)	7/8 in.
Volts	208/240V
