ADPBVRMB5125S001

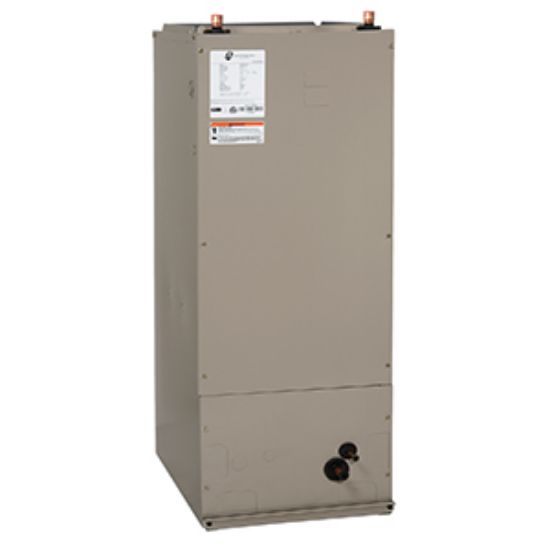

ADP BVRMB5125S001 B-Series R410A Variable Speed Air Handler 1.5 - 2 Tonnes, 1000 cfm, 240V, 25000 btu/hr

Manufacturer: ADP

$0.00

Qty:

Air Handler, B Series, 18-1/2 in. Width, 48 in. Height, Material: Painted Steel, AMP: 0.28A, 25000 btu/hr BTU, Multi-Position Configuration, Depth: 22 in., Air Filter, Horsepower: 1/3 hp, Liquid Line (OD): 3/8 in., 600 - 1000 cfm Cooling and Heating Maximum, Phase: 1 PH, R-410A Refrigerant, Suction Line (OD): 3/4 in., Tonnage: 1.5 - 2 Tonnes, 208/240V Volts, 60Hz Frequency Rating, 0.053 in. Piston, Blower size: 9 x 6 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	18-1/2 in.
Height	48 in.
Material	Painted Steel
AMP	0.28A
Blower Size	9 x 6 in.
BTU	25000 btu/hr
CFM	600 - 1000 cfm Cooling and Heating
Configuration	Multi-Position
Depth	22 in.
Filter Type	Air
Frequency Rating	60Hz
Horsepower	1/3 hp
Liquid Line (OD)	3/8 in.
Phase	1 PH
Piston Size	0.053 in.
Refrigerant	R-410A
Suction Line (OD)	3/4 in.
Tonnage	1.5 - 2 Tonnes
Volts	208/240V
