ADPBVRMC3137S001

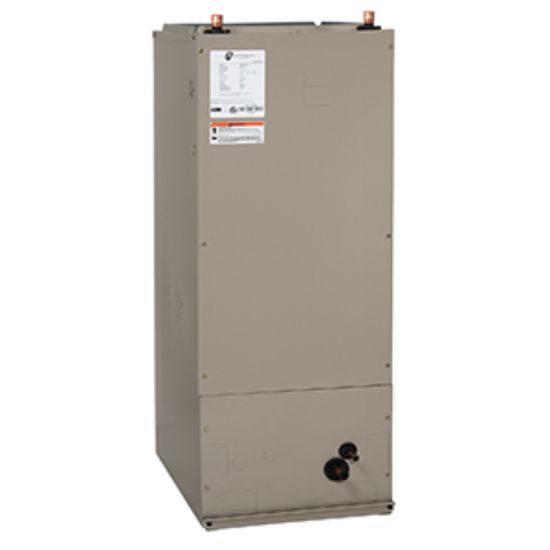

ADP BVRMC3137S001 B-Series R410A Variable Speed Air Handler 2.5 - 3 Tonnes, 1200 cfm, 240V, 37000 btu/hr

Manufacturer: ADP

$0.00

Qty:

Air Handler, B Series, 20 in. Width, 49 in. Height, Material: Painted Steel, AMP: 0.28A, 37000 btu/hr BTU, Multi-Position Configuration, Depth: 26 in., Air Filter, Horsepower: 1/2 hp, Liquid Line (OD): 3/8 in., 600 - 1200 cfm Cooling, 1100 - 1200 cfm Heating Maximum, Phase: 1 PH, R-410A Refrigerant, Suction Line (OD): 7/8 in., Tonnage: 2.5 - 3 Tonnes, 208/240V Volts, 60Hz Frequency Rating, 0.067 in. Piston, Blower size: 10 x 8 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	20 in.
Height	49 in.
Material	Painted Steel
AMP	0.28A
Blower Size	10 x 8 in.
BTU	37000 btu/hr
CFM	600 - 1200 cfm Cooling, 1100 - 1200 cfm Heating
Configuration	Multi-Position
Depth	26 in.
Filter Type	Air
Frequency Rating	60Hz
Horsepower	1/2 hp
Liquid Line (OD)	3/8 in.
Phase	1 PH
Piston Size	0.067 in.
Refrigerant	R-410A
Suction Line (OD)	7/8 in.
Tonnage	2.5 - 3 Tonnes
Volts	208/240V
