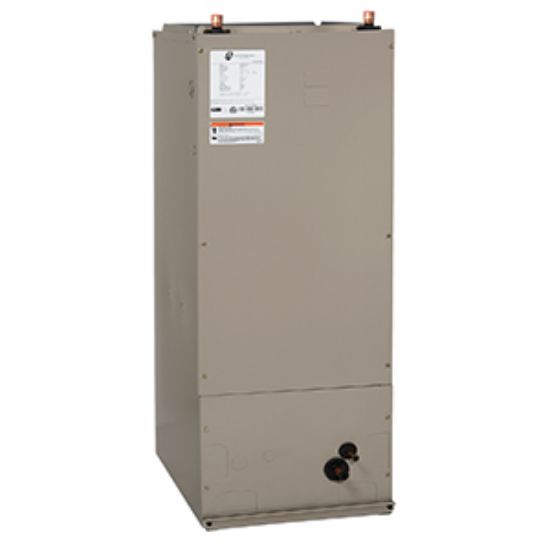

ADPBVRMW4030S001

ADP BVRMW4030S001 Painted Steel Multi-Position Air Handler, 30000 btu/hr, 1/2 hp, 208/240V at 60Hz, 1 PH, 0.28A

Manufacturer: ADP

$0.00

Qty:

Air Handler, B Series, 18-1/2 in. Width, 48 in. Height, Material: Painted Steel, AMP: 0.28A, 30000 btu/hr BTU, Multi-Position Configuration, Depth: 22 in., Air Filter, Horsepower: 1/2 hp, Liquid Line (OD): 3/8 in., 600 - 1200 cfm Cooling, 1100 - 1200 cfm Heating Maximum, Phase: 1 PH, Suction Line (OD): 3/4 in., 208/240V Volts, 60Hz Frequency Rating, Blower size: 10 x 8 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	18-1/2 in.
Height	48 in.
Material	Painted Steel
AMP	0.28A
Blower Size	10 x 8 in.
BTU	30000 btu/hr
CFM	600 - 1200 cfm Cooling, 1100 - 1200 cfm Heating
Configuration	Multi-Position
Depth	22 in.
Filter Type	Air
Frequency Rating	60Hz
Horsepower	1/2 hp
Liquid Line (OD)	3/8 in.
Phase	1 PH
Suction Line (OD)	3/4 in.
Volts	208/240V
