Picture of C++ 3466 3/4-1/5 HP115V 3-SPD D.D. BLOWE

C++ 3466 3/4-1/5 HP115V 3-SPD D.D. BLOWE

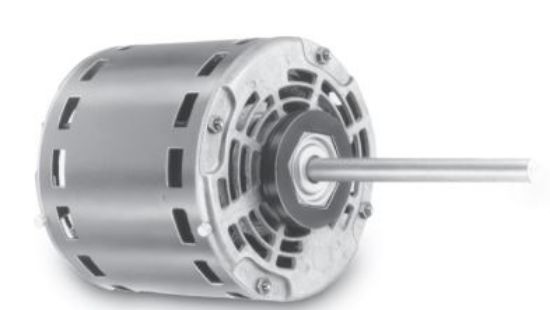

Regal Beloit 3466 3/4 - 1/5 hp 1075 RPM 115V Single Phase 3-Speed Fan Blower Motor
Manufacturer: Regal Beloit
$0.00
This Life-Line single-phase 3/4 - 1/5 horsepower fan and blower motor with a permanent split capacitor operates at 115V/8.5A/60Hz. It has a 12-1/7 inches length, a 1/2 inch double flat shaft, a 5-1/2 inches diameter, a capacitance rating of 20 MFD, a 48-frame size, a maximum operating temperature of 104 degrees Fahrenheit and an open enclosure. The 3-speed reversible thru bolt/belly band mounting motor rotates at 1075 RPM and weighs 19.40 lb. It is UL-listed and features 38 inches leads, rheem mounting holes, sleeve bearing, thermal protection, Class B Insulation/40°C ambient and extended clamp bolts.
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 8.5;7.90
Diameter 5-3/5 in.
Horsepower 3/4 - 1/5 hp
Length 12-1/7 in.
Maximum Temperature 104
MFD Rating 20 mfd
Motor Enclosure Open
RPM 1075
Volts 115V
Weight 19.40 lb
Origin Mexico
Product Type Blower Motors & Parts
Blower Type 4 Speed
Phase Single Phase
