Picture of N++ A163 VENTOR MOTOR 68K21 LENNOX REPL

N++ A163 VENTOR MOTOR 68K21 LENNOX REPL

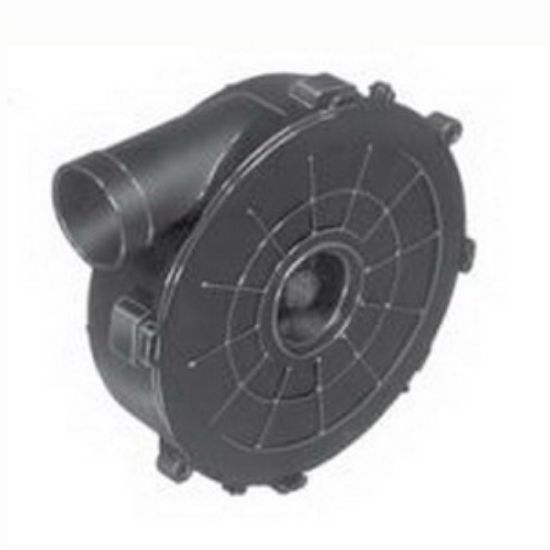

Regal Beloit A163 1/20 hp 3400 RPM 115V Single Phase Draft Inducer Motor
Manufacturer: Regal Beloit
$0.00
This single-phase 1/20 horsepower draft inducer blower with a shaded pole operates at 115V/1.8A/60Hz and comes in plastic. It has a 6 inches width x 9-1/2 inches depth/height and 3-3/10 inches diameter. The 1-speed motor rotates the shaft end counter clockwise at 3400 RPM. It is UL-listed, CSA certified and weighs 4 lb. The blower features 7 inches leads with socket terminals, ball bearings, thermally overload protection, open-air over, Class B Insulation/40°C ambient and 2.02 inches inlet/2.1 inches outlet diameter. It is suitable for gas furnaces, water heaters, space heaters, food service equipment and medical applications.
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 1.8
Depth 9-1/2 in.
Diameter 3-3/10 in.
Height 9-1/2 in.
Horsepower 1/20 hp
Material Plastic
RPM 3400
Volts 115V
Weight 4.00 lb
Width 6 in.
Application Gas Furnace;Water Heater;Space Heater;Food Service Equipment and Medical
Product Type Inducer Motors
Blower Type 1 Speed
