AICD335

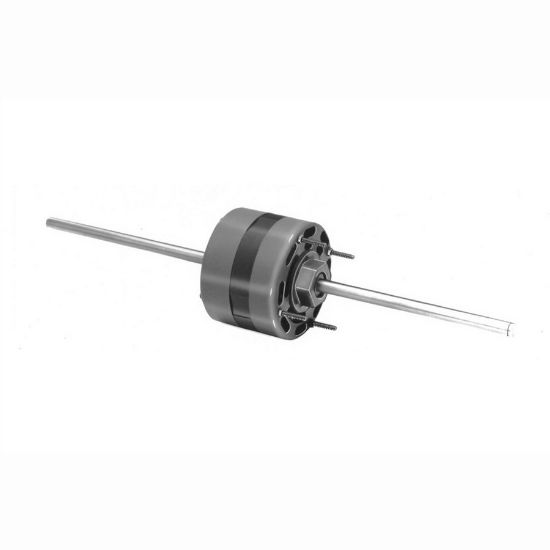

D335 Directional Symmetry Shaded Pole Fan Motor, 1/20, 1/30, 1/40, 1/60 hp, 4-Speed, 1550 RPM, 115V

Manufacturer: Regal Beloit

$0.00

Qty:

Shaded Pole Fan Motor, 3-1/4 in. Length, AMP: 2.1/1.4/1.2/1.1A, Diameter: 4.4 in. Motor, 3-29/32 in. Bolt Circle, 4.4 in. Frame Size, Horsepower: 1/20 hp, 1/30 hp, 1/40 hp, 1/60 hp, Open Motor Enclosure, Phase: 1 PH, 1550 RPM, 115V Volts, 4 Number of Speeds, Directional Symmetry (DS) Rotation, Sleeve Bearing Type, 60Hz Frequency Rating, 8 in. Length x 1/2 in. Diameter Shaft Size

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3-1/4 in.
AMP	2.1/1.4/1.2/1.1A
Bearing Type	Sleeve
Diameter	4.4 in. Motor, 3-29/32 in. Bolt Circle
Frame Size	4.4 in.
Frequency Rating	60Hz
Horsepower	1/20 hp, 1/30 hp, 1/40 hp, 1/60 hp
Motor Enclosure	Open
Phase	1 PH
Rotation	Directional Symmetry (DS)
RPM	1550 RPM
Shaft Size	8 in. Length x 1/2 in. Diameter
Volts	115V
