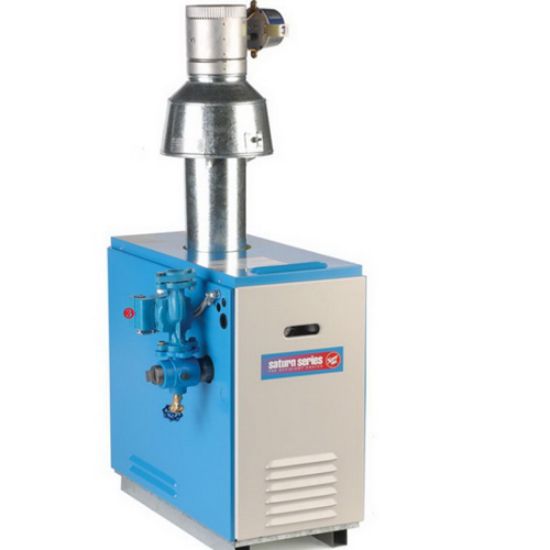

SG360EM N/G EL/ING STD 2-STG BOILER

Allied Engineering SG-360EM Natural Gas Automatic Vent Standard 2-Stage Boiler, 4.5 gal, 360000 btu/hr Input, 303000 btu/hr Output, 30.3 gpm at 20F
Manufacturer: Allied Engineering Corp
$0.00
Standard 2-Stage Gas Boiler, Saturn Series, 30-1/4 in. Length, 37.7 in. Width, 60.1 in. Height, Flow Rate: 30.3 gpm at 20F, 20.2 gpm at 30F, Colour/Finish Name: Baked Enamel, BTU: 303000 btu/hr Output, Energy Star Compliant: Yes, 85% AFUE, Fuel Type: Natural Gas, 106kW Input, 88.8kW Output Watts, 4.5 gal Capacity, Intermittent Electronic Pilot Ignition System, Input: 360000 btu/hr, Supply Pipe Connection Size: 3/4 in. NPT Gas, 2 in. MNPT Inlet, Outlet, Automatic Vent, 3.2 ft. at 20F, 1.4 ft. at 30F Pressure Drop, 9 in. Vent Diameter
Products specifications
products.specs.attributename products.specs.attributevalue
Length 30-1/4 in.
Width 37.7 in.
Height 60.1 in.
AFUE 85%
BTU 303000 btu/hr Output
Capacity 4.5 gal
Colour/Finish Name Baked Enamel
Energy Star Compliant Yes
Fuel Type Natural Gas
Ignition System Intermittent Electronic Pilot
Input 360000 btu/hr
Pressure Drop 3.2 ft. at 20F, 1.4 ft. at 30F
Supply Pipe Connection Size 3/4 in. NPT Gas, 2 in. MNPT Inlet, Outlet
Vent Diameter 9 in.
Vent Type Automatic
Watts 106kW Input, 88.8kW Output
