6064101.002 URINAL FV LLB 1.0 GPF

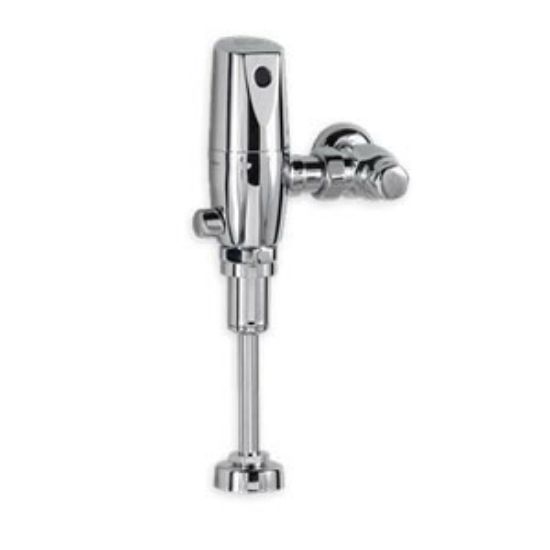

American Standard 6064101.002 Ultima Selectronic 1.0 gpf Sensor Urinal Flush Valve, Polished Chrome
Manufacturer: American Standard
$0.00
The optional PWRX Long-Life Battery System features advanced battery and electronics for a 10 year battery life to reduce the downtime and maintenance costs associated with changing batteries. Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressureSelf-Cleaning Piston with integral wiper spring significantly reduces clogging and maintenanceDezincification Resistant semi-red brass alloySelectronic Proximity System with universal sensor provides hygienic, in.hands free in. operationState-of-the-Art Electronics prevent ghost flushingFully Mechanical Manual Override Button can flush the valve without powerFail-Safe: Valve automatically closes upon loss of power or water pressure and does not need to be reset
Products specifications
products.specs.attributename products.specs.attributevalue
ADA Compliant Yes
Brand/Model Compatibility Urinals With 3/4 In. Exposed Top Spud
Colour/Finish Category Chromes
Colour/Finish Name Chrome
End Connection IPS
End Connection 1 IPS
Flow Rate 1.0 gpm
Flush Type Sensor
Height 16-13/20 in.
Length 10 in.
Material Brass
Specifications - ANSI ANSI A112.19.2
Specifications - ASME ASME A112.19.2
Style Name Selectronic
Valve Size 3/4 in.
Flush Valve Application Commercial Urinal
Product Type Flush Valves
Specifications - CEC Compliant Not for Sale in CA
Toilet Installation Wall Mount
Toilet/Urinal Outlet Wall
