BTRC-200A LP 100G 199K BTU COM WTR HTR

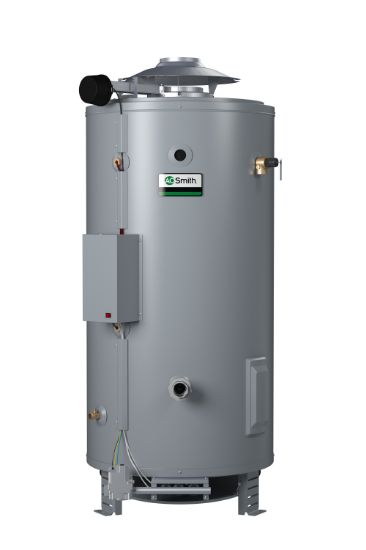

A O Smith Master-Fit BTRC-200A Atmospheric Vent Commercial ASME Construction Propane Gas Water Heater, 100 gal, 58kW, 120 VAC, 0.7A, 199000 btu/hr

Manufacturer: A.O. Smith

$0.00

Qty:

Master-Fit Atmospheric Vent Commercial Propane Gas Water Heater, Model: BTRC-200A, 72 in. Height, Heavy Gauge Steel Jacket, AMP: 0.7A, BTU: 199000 btu/hr, 100 gal Capacity, Colour/Finish Name: Baked Enamel, Diameter: 30-1/4 in., End Connection 1: NPT, End Connection 2: NPT, 193 gph at 100F Temperature Rise Recovery Flow Rate, Power On/Off Switch Ignition System, Lead Law Compliant: Yes, 180F Maximum - Temperature, Pressure - Maximum: 160 psi Working, 13.8 in. WC Gas, Specifications - ANSI: ANSI Z21.10.3, CSA 4.3 Specifications - CSA Certified, Specifications - UL Listed: Yes, Supply Pipe Connection Size: 1-1/2 in. Top, 2 in. Front and Rear, 120 VAC Volts, 58kW Watts, 6 in. Vent Diameter, 80% Thermal Efficiency

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	72 in.
Material	Heavy Gauge Steel Jacket
AMP	0.7A
BTU	199000 btu/hr
Capacity	100 gal
Colour/Finish Name	Baked Enamel
Diameter	30-1/4 in.
End Connection 1	NPT
End Connection 2	NPT
Ignition System	Power On/Off Switch
Lead Law Compliant	Yes
Maximum Temperature	180F
Pressure - Maximum	160 psi Working, 13.8 in. WC Gas
Specifications - ANSI	ANSI Z21.10.3
Specifications - CSA Certified	CSA 4.3
Specifications - UL Listed	Yes
Supply Pipe Connection Size	1-1/2 in. Top, 2 in. Front and Rear
Thermal Efficiency	80%
Vent Diameter	6 in.
Volts	120 VAC
Watts	58kW
