COF-455 COMMERCIAL WTR HTR

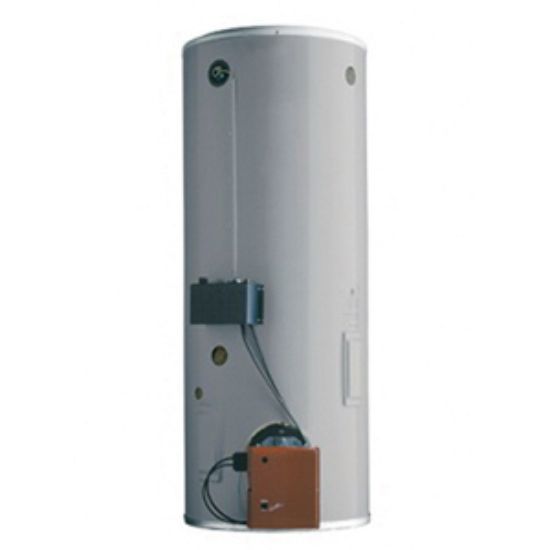

A O Smith Dura-Clad Conservationist COF-455 Commercial Small Volume Oil Forced Draft Water Heater, 75 gal, 138kW Input and 115.9kW Output, 230 VAC at 50Hz, 455000 btu/hr
Manufacturer: A.O. Smith
$0.00
Dura-Clad Conservationist Commercial Small Volume Oil Forced Draft Water Heater, Model: COF-455, 37 in. Length, 74-3/4 in. Height, BTU: 455000 btu/hr, 75 gal Capacity, Diameter: 24-3/4 in., End Connection 1: NPT, End Connection 2: NPT, First Hour Delivery: 494 gph, Flow Rate: 11.6 Kg/hr at 20C 1013.25 mbar, Maximum Temperature: 80C, Pressure - Maximum: 800 kPa, Specifications - ASME: ASME 747, Specifications - UL Listed: Yes, Supply Pipe Connection Size: Rp1-1/2 Cold Water Inlet and Hot Water Outlet, 230 VAC Volts, 138kW Input and 115.9kW Output Watts, 6 in. Vent Diameter, 80% Thermal Efficiency, 50Hz (Plus or Minus 1Hz) Frequency Rating, Pump Pressure: 12 bar, Burner Model: RG 3, Burner Type: 393 T1, 385W Power Consumption, Efficiency: 65%
Products specifications
products.specs.attributename products.specs.attributevalue
Length 37 in.
Height 74-3/4 in.
BTU 455000 btu/hr
Capacity 75 gal
Diameter 24-3/4 in.
Efficiency 65%
End Connection 1 NPT
End Connection 2 NPT
First Hour Delivery 494 gph
Frequency Rating 50Hz (Plus or Minus 1Hz)
Maximum Temperature 80C
Power Consumption 385W
Pressure - Maximum 800 kPa
Specifications - ASME ASME 747
Specifications - UL Listed Yes
Supply Pipe Connection Size Rp1-1/2 Cold Water Inlet and Hot Water Outlet
Thermal Efficiency 80%
Vent Diameter 6 in.
Volts 230 VAC
Watts 138kW Input and 115.9kW Output
