AOSDVE120546003

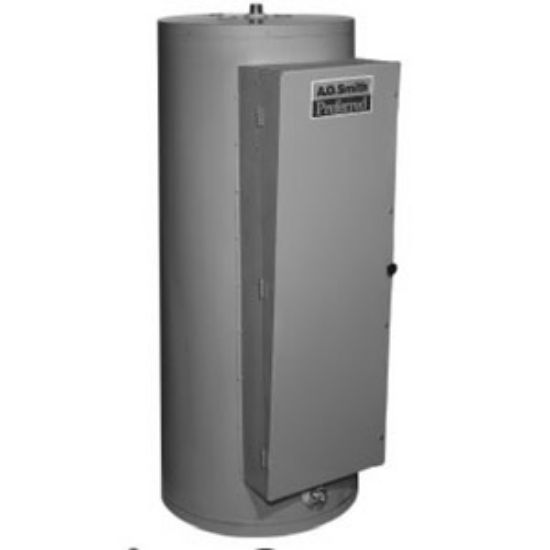

A O Smith Dura-Power Conservationist DVE-120-54 9-Element Commercial Electric Water Heater, 119 gal, 54kW, 600V, 3 PH, 184302 btu/hr, 150 psi

Manufacturer: A.O. Smith

$0.00

Qty:

Dura-Power Conservationist Commercial Electric Water Heater, Model: DVE-120-54, 35-3/4 in. Width, 62-1/4 in. Height, 184302 btu/hr BTU, 119 gal Capacity, Diameter: 29-1/2 in., End Connection 1: NPT, End Connection 2: NPT, Flow Rate: 738 gph at 30F Temperature Rise Recovery, Maximum Temperature: 180F, Number of Elements: 9, Phase: 3 PH, Pressure - Maximum: 150 psi, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, Supply Pipe Connection Size: 1-1/4 in. Inlet and Outlet, 600V Volts, 54kW Watts, 60Hz Frequency Rating, 6000W Element

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	35-3/4 in.
Height	62-1/4 in.
BTU	184302 btu/hr
Capacity	119 gal
Diameter	29-1/2 in.
Element Wattage	6000W
End Connection 1	NPT
End Connection 2	NPT
Frequency Rating	60Hz
Maximum Temperature	180F
Number of Elements	9
Phase	3 PH
Pressure - Maximum	150 psi
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
Supply Pipe Connection Size	1-1/4 in. Inlet and Outlet
Volts	600V
Watts	54kW
