AOSMXIBTH199ANG

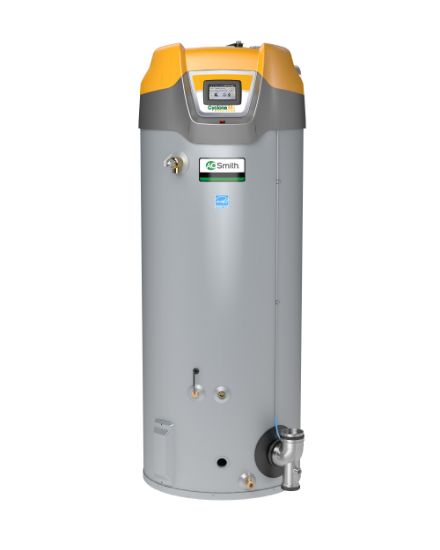

A O Smith BTH-199A Cyclone MXI Modulating Commercial ASME Natural Gas Water Heater, 199900 BTU/hr, 100 USG

Manufacturer: A.O. Smith

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	75-1/2 in.
AMP	5A
BTU	199900 btu/hr
Capacity	100 gal
Diameter	27-3/4 in.
End Connection 1	NPT
End Connection 2	NPT
Energy Star Compliant	Yes
Frequency Rating	60Hz
Ignition System	Direct Spark
Lead Law Compliant	Yes
Maximum Temperature	180F
Pressure - Maximum	160 psi Working, 14 in. WC Gas
Specifications - ANSI	ANSI Z21.10.3
Specifications - CSA Certified	CSA 4.3
Specifications - NSF	NSF 5
Specifications - NSF Certified	Yes
Supply Pipe Connection Size	3/4 in. Drain, 1-1/2 in. Water inlet
Thermal Efficiency	97%
Vent Diameter	3 in.
Volts	120 VAC
Watts	58kW
