AOSMXIBTH250LP

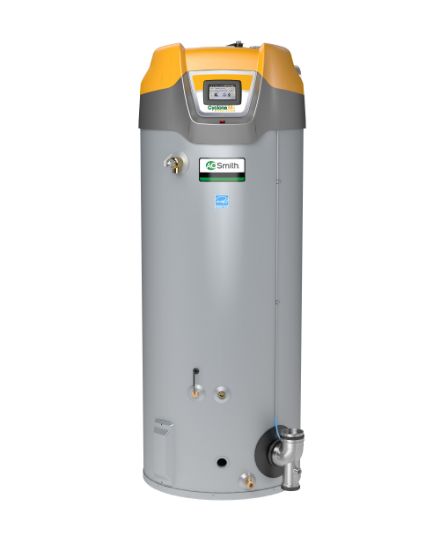

A O Smith Cyclone Mxi BTH-250 Commercial Propane Gas Water Heater, 100 gal, 73kW, 120 VAC, 5A, 250000 btu/hr

Manufacturer: A.O. Smith

$0.00

Qty:

Cyclone Mxi Commercial Propane Gas Water Heater, 201 Series, Model: BTH-250, 75-1/2 in. Height, AMP: 5A, BTU: 250000 btu/hr, 100 gal Capacity, Diameter: 27-3/4 in., End Connection 1: NPT, End Connection 2: NPT, Energy Star Compliant: Yes, 291 gph at 100F Temperature Rise Recovery Flow Rate, Direct Spark Ignition System, Lead Law Compliant: Yes, 180F Maximum - Temperature, Pressure - Maximum: 160 psi Working, 14 in. WC Gas, Specifications - ANSI: ANSI Z21.10.3, CSA 4.3 Specifications - CSA Certified, Specifications - NSF: NSF 5, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, Supply Pipe Connection Size: 3/4 in. Gas, 1-1/2 in. Water Inlet, 120 VAC Volts, 73kW Watts, 3 in. Vent Diameter, 96% Thermal Efficiency, 60Hz Frequency Rating

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	75-1/2 in.
AMP	5A
BTU	250000 btu/hr
Capacity	100 gal
Diameter	27-3/4 in.
End Connection 1	NPT
End Connection 2	NPT
Energy Star Compliant	Yes
Frequency Rating	60Hz
Ignition System	Direct Spark
Lead Law Compliant	Yes
Maximum Temperature	180F
Pressure - Maximum	160 psi Working, 14 in. WC Gas
Specifications - ANSI	ANSI Z21.10.3
Specifications - CSA Certified	CSA 4.3
Specifications - NSF	NSF 5
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
Supply Pipe Connection Size	3/4 in. Gas, 1-1/2 in. Water Inlet
Thermal Efficiency	96%
Vent Diameter	3 in.
Volts	120 VAC
Watts	73kW
