70-103-27-41 1/2" THRD BALL VLV W/DRN

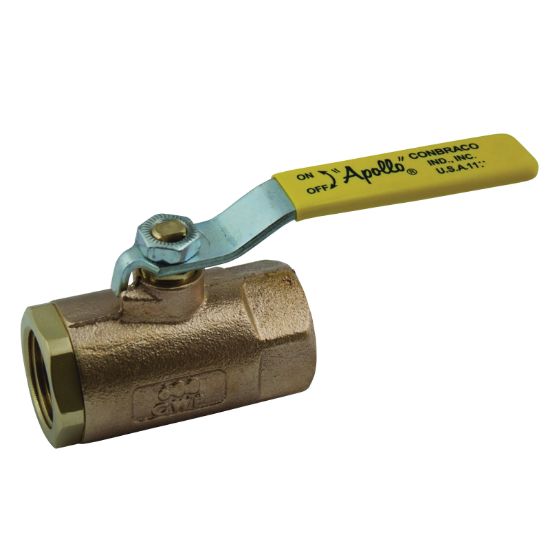

Apollo 70-103-27-41 Bronze Latch Lock Lever Handle Reduced Port Ball Valve, 1/2 in., FNPT

Manufacturer: Conbraco

$0.00

Qty:

Ball Valve, 70-100 Series, 2.17 in. Length, Material: Bronze, End Connection 1: FNPT, End Connection 2: FNPT, Maximum Temperature: 500F, Pressure - Maximum: 600psig CWP (Cold Non-Shock), Specifications - MSS: MSS SP-110, Valve Body Style: 2-Piece, Valve Operator: Latch Lock Lever Handle, Reduced Port Valve Port Opening, R-PTFE Valve Seat, Valve Size: 1/2 in., M-PTFE Stem Valve Packing, Dimension: 1-3/4 in. Inlet Centre to Top of Handle, 3.87 in. Handle Length, Brass Valve Stem, Zinc-Plated Stainless Steel with Vinyl Grip Handle, PTFE Valve Seal, 1/2 in. Port Diameter, Specifications - ASTM: ASTM B-584 C-84400, 150psig Saturated Steam Working Pressure, Specifications - CSA Certified: CSA B51 CRN OC10908.5C, Brass Ball Valve Trim, 15 Flow Co-Efficient (Cv)

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2.17 in.
Material	Bronze
Dimension	1-3/4 in. Inlet Centre to Top of Handle, 3.87 in. Handle Length
End Connection 1	FNPT
End Connection 2	FNPT
Flow Co-Efficient (Cv)	15
Handle Material	Zinc-Plated Stainless Steel with Vinyl Grip
Maximum Temperature	500F
Port Diameter	1/2 in.
Pressure - Maximum	600psig CWP (Cold Non-Shock)
Specifications - ASTM	ASTM B-584 C-84400
Specifications - CSA Certified	CSA B51 CRN OC10908.5C
Specifications - MSS	MSS SP-110
Valve Body Style	2-Piece
Valve Operator	Latch Lock Lever Handle
Valve Packing Material	M-PTFE Stem
Valve Port Opening	Reduced Port
Valve Seal Material	PTFE
Valve Seat Material	R-PTFE
Valve Size	1/2 in.
Valve Stem Material	Brass
Valve Trim Material	Brass Ball
Working Pressure	150psig Saturated Steam
