70-105-01 1" 600 WOG THRD APOLLO

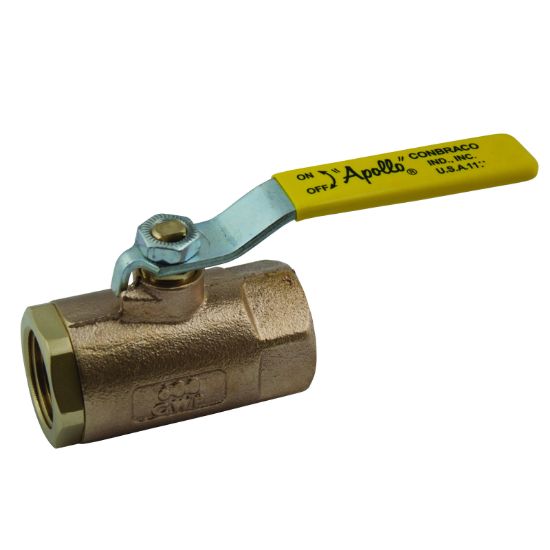

Apollo 70-105-01 Bronze Lever Handle Reduced Port 2-Piece Ball Valve, 1 in., FNPT

Manufacturer: Conbraco

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	3.37 in.
Material	Bronze
Dimension	2-1/4 in. Inlet Centre to Top of Handle, 4.87 in. Handle Length
End Connection 1	FNPT
End Connection 2	FNPT
Flow Co-Efficient (Cv)	43
Handle Material	Zinc-Plated Stainless Steel with Vinyl Grip
Maximum Temperature	500F
Port Diameter	0.87 in.
Pressure - Maximum	600psig CWP (Cold Non-Shock)
Specifications - ASTM	ASTM B-584 C-84400
Specifications - CSA Certified	CSA B51 CRN OC10908.5C
Specifications - MSS	MSS SP-110
Valve Body Style	2-Piece
Valve Operator	Lever Handle
Valve Packing Material	M-PTFE Stem
Valve Port Opening	Reduced Port
Valve Seal Material	PTFE
Valve Seat Material	R-PTFE
Valve Size	1 in.
Valve Stem Material	Brass
Valve Trim Material	Brass Ball
Working Pressure	150psig Saturated Steam
Size	1"
Type	2 PC
Brand	Apollo
End	THRD
Pressure	0-800
Body	Brass/Bronze
Port	RP
