APO94ALF20301A

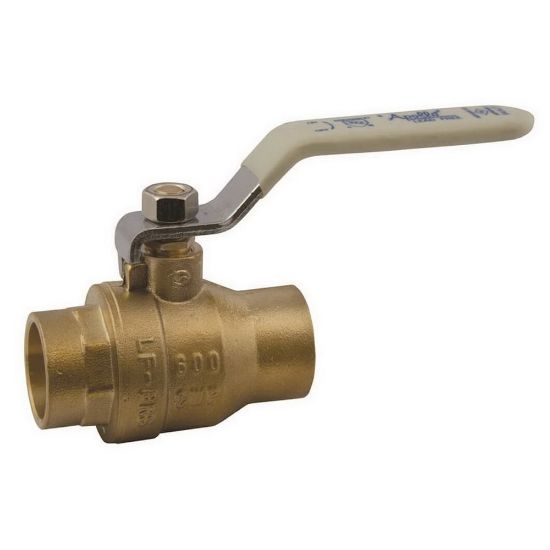

Economy Ball Valve, 94ALF-A Series, 2.05 in. Width, DZR Brass, End Connection 1: Solder, Pressure - Maximum: 600 psi CWP, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, End Connection 2: Solder, Specifications - ASTM: ASTM C-36000, Valve Operator: Lever Handle, PTFE Valve Seat, Valve Size: 1/2 in., Plated Steel with PVC Grip Handle, Dimension: 1.84 in. Inlet Centre to Top of Handle, 3.54 in. Handle Length, PTFE Valve Seal, Brass Valve Stem, PTFE Stem Valve Packing, Maximum Temperature: -20 to 366F, Recommended Valve Application: Gas, Specifications - ANSI: ANSI Z21.15/CSA 9.1, Specifications - ASME: ASME B16.44 (CR91-002), ASME B16.33 (CGA 3.16), Lead Law Compliant: Yes, Specifications - NSF: NSF 61, 8 and 372, Specifications - NSF Certified: Yes, Full Port Valve Port Opening, Specifications - MSS: MSS SP-110, Valve Body Style: 2-Piece, Brass (DZR) Ball Valve Trim, Opening Size: 0.58 in.
