APOLD14104DE11

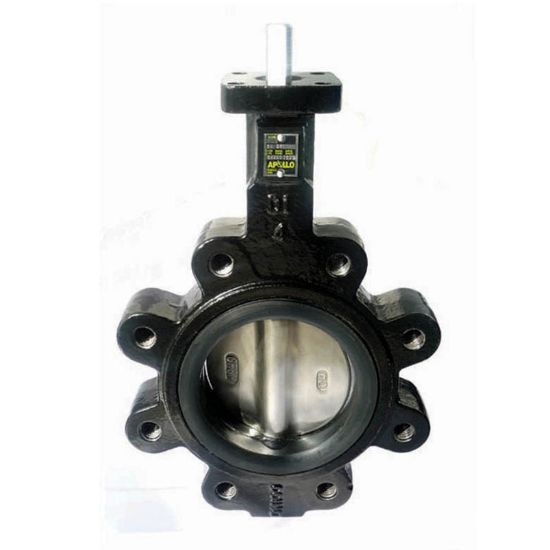

Apollo LD14104DE11 Lead Free Ductile Iron Companion Lug Butterfly Valve, 4 in., Flanged

$0.00

Qty:

Butterfly Valve, LD141 Series, 14.01 in. Height, Material: Ductile Iron, End Connection 1: Flanged, End Connection 2: Flanged, Lead Law Compliant: Yes, Maximum Temperature: -20 to 250F, Pressure - Maximum: 200 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, Specifications - AWWA: AWWA C-504, Specifications - MSS: MSS SP-67, Valve Body Style: Companion Lug, Ductile Iron Valve Disc, EPDM Valve Seat, Valve Size: 4 in., Buna-N Valve Seal, Dimension: 6-3/4 in. Actual Outside Diameter, 600 (Full Port) Flow Co-Efficient (Cv)

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	14.01 in.
Material	Ductile Iron
Dimension	6-3/4 in. Actual Outside Diameter
End Connection 1	Flanged
End Connection 2	Flanged
Flow Co-Efficient (Cv)	600 (Full Port)
Lead Law Compliant	Yes
Maximum Temperature	-20 to 250F
Pressure - Maximum	200 psi
Specifications - ASTM	ASTM A-536 Grade 65-45-12
Specifications - AWWA	AWWA C-504
Specifications - MSS	MSS SP-67
Valve Body Style	Companion Lug
Valve Disc Material	Ductile Iron
Valve Seal Material	Buna-N
Valve Seat Material	EPDM
Valve Size	4 in.
