ARM106284MF132

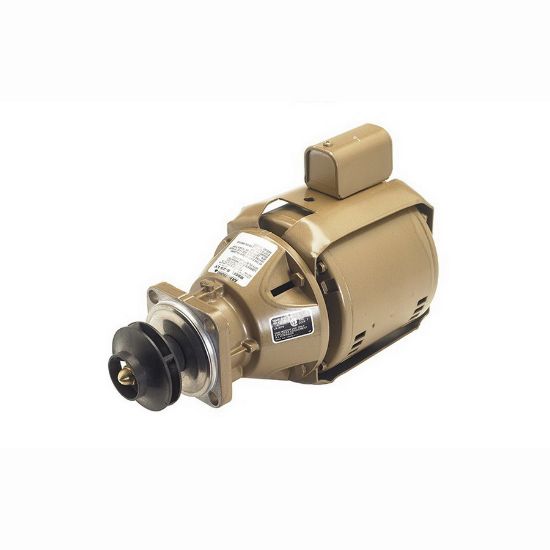

Armstrong S55 Cast Iron 3-Piece Less Volute Circulator Pump, 115/230V at 60 Hz, 1 PH, 1/2 hp

Manufacturer: S.A. Armstrong

$0.00

Qty:

3-Piece Less Volute Circulator Pump, S Series, Model: S55, 19-1/2 in. Length, 14 in. Height, Cast Iron, End Connection 1: Flanged NPT, Fitting Size 1: 3 in., 0 - 122 gpm Flow Rate, Horsepower: 1/2 hp, 24 ft. Maximum Feet of Head, 225F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 125psig at 225F, ODP Pump Motor Type, In-Line Pump Mounting, 1 PH Pump Phase, 1800 RPM, 115/230V VAC at 60 Hz, Non-Ferrous Impeller Material, Alloy Steel Shaft Material

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	19-1/2 in.
Height	14 po
Material	Cast Iron
End Connection 1	Flanged NPT
Fitting Size 1	3 in.
Horsepower	1/2 hp
Impeller Material	Non-Ferrous
Maximum Feet of Head	24 ft.
Maximum Temperature	225F
Phase	1 PH
Pressure - Maximum	125psig at 225F
Pump Motor Type	ODP
Pump Mounting	In-Line
Pump Phase	1 PH
RPM	1800 RPM
Shaft Material	Alloy Steel
VAC at 60 Hz	115/230V
