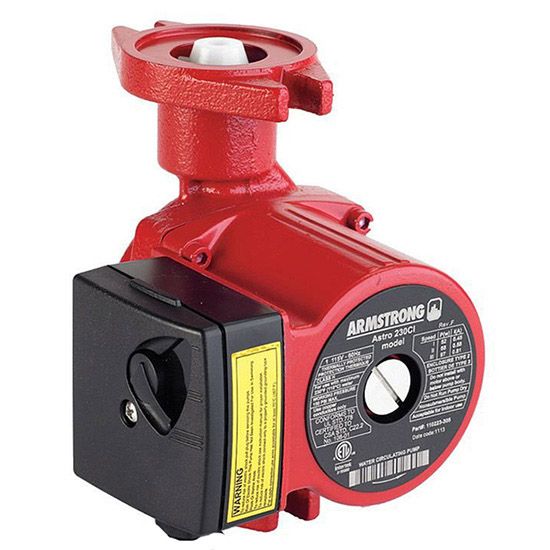

Picture of 110223-305 ASTRO 230CI 3SPEED PUMP CIRC

110223-305 ASTRO 230CI 3SPEED PUMP CIRC

S.A. Armstrong 110223-305 115 VAC/60Hz, Hardwired, Single Phase, 1/25 hp Cast Iron 3-Speed Astro 2 Circulating Pump
Manufacturer: S.A. Armstrong
$0.00
This single-phase 1/25 HP circular pump operates on ODP motor of 115V, 0.45/0.58/0.81A and 60Hz at 97W. It is made of cast iron and has a ceramic bearing/shaft, PA66 Noryl impeller and flanged connection. The pump has an operating temperature of 230 degrees Fahrenheit, a pressure of 150 PSI, a flow rate of 20 GPM, 42 feet head and 2800 RPM. It is UL-listed and meets the CSA C22.2 standard. The pump features an EPDM gasket, closed system body and e-Coating on the inside of cast-iron volutes provides enhanced corrosion protection, compatibility, a large wiring box and a convenient plug-in terminal strip.
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 0.45;0.58;0.81
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Fitting Size 1 1 in.
Fitting Size 2 1-1/4 in.
Fitting Size 3 2 in.
Fitting Sizes 1 in. x 1-1/4 in. x 2 in.
Height 6-3/8 in.
Horsepower 1/25 hp
Impeller PA66 Noryl
Length 6 in.
Material Cast Iron
Maximum Feet of Head 42 ft.
Maximum Temperature 110
Power Source Hardwired
Pressure - Maximum 150 psi
Pump Motor Type ODP
Pump Phase Single Phase
RPM 2800
Specifications - CSA Certified CSA C22.2
Specifications - UL Listed Yes
VAC at 60 Hz 115VAC
Product Type Circulator Pumps
Phase Single Phase
Pump Mounting In-Line
