ARM110223320

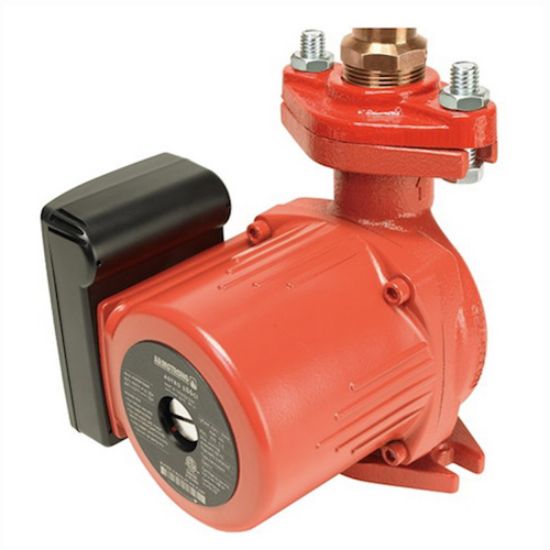

Armstrong 110223320 280CI Cast Iron 3-Speed Astro 2 Circulating Pump 115 VAC at 60Hz 1 PH 1/25 hp

Manufacturer: S.A. Armstrong

$0.00

Qty:

Circulating Pump, Astro 2 Series, Model: 280CI, 6.37 in. Length, 6-1/2 in. Height, Cast Iron, AMP: 1.5A (Speed 1), 1.8A (Speed 2), 1.9A (Speed 3), End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 3/4, 1, 1-1/4, 1-1/2 in., Fitting Size 2: 3/4, 1, 1-1/4, 1-1/2 in., 0 - 64 gpm US Flow Rate, Horsepower: 1/25 hp, PA66 Noryl Impeller, 0 - 42 ft. Maximum Feet of Head, 110C Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 150 psi, ODP Pump Motor Type, In-Line Pump Mounting, 1750 RPM, CSA C22.2 Specifications - CSA Certified, Specifications - UL Listed: Yes, 230 VAC VAC at 60 Hz, 3 Number of Speeds, 218W Power Rating, Ceramic Shaft Material, Ceramic Bearing Material, 40C Ambient Temperature Environmental Conditions

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6.37 in.
Height	6-1/2 po
Material	Cast Iron
AMP	1.5A (Speed 1), 1.8A (Speed 2), 1.9A (Speed 3)
Bearing Material	Ceramic
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	40C Ambient Temperature
Fitting Size 1	3/4, 1, 1-1/4, 1-1/2 in.
Fitting Size 2	3/4, 1, 1-1/4, 1-1/2 in.
Horsepower	1/25 hp
Impeller	PA66 Noryl
Maximum Feet of Head	0 - 42 ft.
Maximum Temperature	110C
Phase	1 PH
Power Rating	218W
Power Source	Hardwired
Pressure - Maximum	150 psi
Pump Motor Type	ODP
Pump Mounting	In-Line
RPM	1750 RPM
Shaft Material	Ceramic
Specifications - CSA Certified	CSA C22.2
Specifications - UL Listed	Yes
VAC at 60 Hz	230 VAC
