ARM110223B241

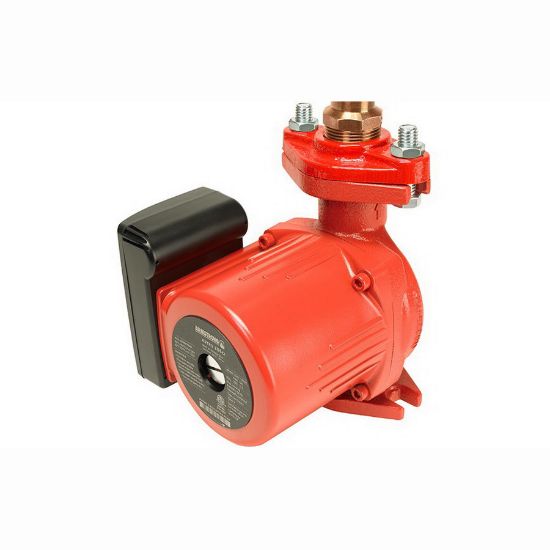

Armstrong 220SSU075S-T Stainless Steel Astro 2 Hot Water Re-Circulation Pump with Cord and Timer, 115 VAC at 60Hz, 1/25 hp

Manufacturer: S.A. Armstrong

$0.00

Qty:

Hot Water Re-Circulation Pump with Cord and Timer, Astro 2 Series, Model: 220SSU075S-T, 5.62 in. Length, 7.3 in. Width, 5.98 in. Height, Stainless Steel, AMP: 0.29A, End Connection 1: Sweat, End Connection 2: Sweat, Fitting Size 1: 3/4 in., Fitting Size 2: 3/4 in., 9 gpm Flow Rate, Horsepower: 1/25 hp, PA66 Noryl Impeller, Lead Law Compliant: Yes, 5.5 ft. Maximum Feet of Head, 110C Maximum - Temperature, Hardwired Power Source, Pressure - Maximum: 150 psi, Specifications - NSF: NSF 372, Specifications - NSF Certified: Yes, 115 VAC VAC at 60 Hz, 33W Power Rating, Ceramic Shaft Material, Ceramic Bearing Material, 40C Ambient Temperature Environmental Conditions

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5.62 in.
Width	7.3 in.
Height	5.98 in.
Material	Stainless Steel
AMP	0.29A
Bearing Material	Ceramic
End Connection 1	Sweat
End Connection 2	Sweat
Environmental Conditions	40C Ambient Temperature
Fitting Size 1	3/4 in.
Fitting Size 2	3/4 in.
Horsepower	1/25 hp
Impeller	PA66 Noryl
Lead Law Compliant	Yes
Maximum Feet of Head	5.5 ft.
Maximum Temperature	110C
Power Rating	33W
Power Source	Hardwired
Pressure - Maximum	150 psi
Shaft Material	Ceramic
Specifications - NSF	NSF 372
Specifications - NSF Certified	Yes
VAC at 60 Hz	115 VAC
