C++ 180203-606 COMPASS 20-20CI VAR-SPD C

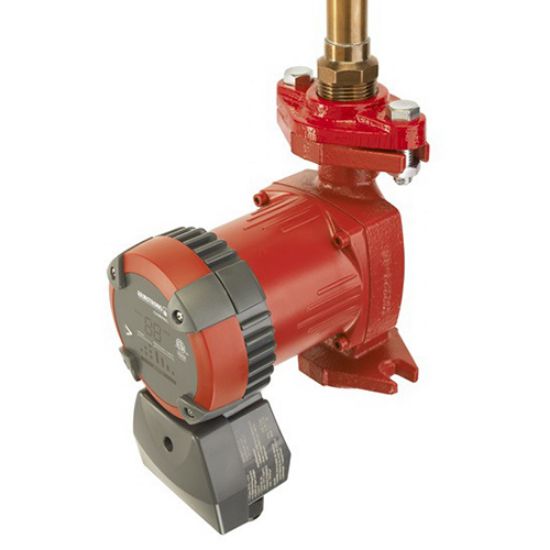

Armstrong 20-20CI Cast Iron Design Envelope Variable Speed Wet Rotor Compass Circulating Pump, 115 VAC at 60Hz, 1 PH

Manufacturer: S.A. Armstrong

$0.00

Qty:

Design Envelope Variable Speed Wet Rotor Compass Circulating Pump, Model: 20-20CI, 7.08 in. Length, 6-1/2 in. Height, Cast Iron, AMP: 0.05 - 0.65A, End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 1 in., Fitting Size 2: 1 in., 20 gpm US Flow Rate, Noryl Impeller, 20 ft. Maximum Feet of Head, 110C Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 150 psi, CSA C22.2 Specifications - CSA Certified, NEMA 2 Specifications - NEMA, Specifications - UL Listed: Yes, 115 VAC VAC at 60 Hz, 5 - 45W Power Rating, Ceramic Shaft Material, Ceramic Bearing Material, 40C Ambient Temperature Environmental Conditions, Insulation Class: H Additional Specifications

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7.08 in.
Height	6-1/2 po
Material	Cast Iron
AMP	0.05 - 0.65A
Bearing Material	Ceramic
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	40C Ambient Temperature
Fitting Size 1	1 in.
Fitting Size 2	1 in.
Impeller	Noryl
Maximum Feet of Head	20 ft.
Maximum Temperature	110C
Phase	1 PH
Power Rating	5 - 45W
Power Source	Hardwired
Pressure - Maximum	150 psi
Shaft Material	Ceramic
Specifications - CSA Certified	CSA C22.2
Specifications - NEMA	NEMA 2
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
