ARM182202654

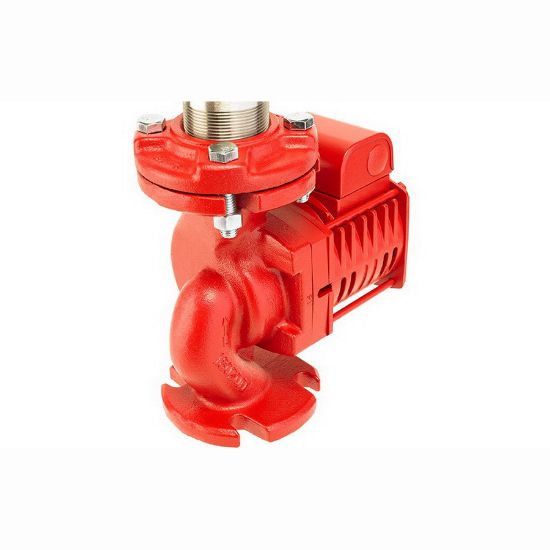

Armstrong E16.2B Bronze Circulator Pump, 120V at 60 Hz, 1 PH, 1/6 hp

Manufacturer: S.A. Armstrong

$0.00

Qty:

Circulator Pump, E.2 Series, Model: E16.2B, 8.4 in. Length, 5.2 in. Width, 8-1/2 in. Height, Bronze, AMP: 2A, End Connection 1: 4-Bolt Flanged, Fitting Size 1: 2 in., 0 - 68 gpm Flow Rate, Horsepower: 1/6 hp, 0 - 16.8 ft. Maximum Feet of Head, 40 - 230F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 150 psi, Dry Pump Motor Type, 1 PH Pump Phase, 3400 RPM, 120V VAC at 60 Hz, 125W Power Rating, Noryl (30% Glass-Filled) Impeller Material, Stainless Steel Shaft Material, Stainless Steel Bearing Material, 2 Number of Poles

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	8.4 in.
Width	5.2 in.
Height	8-1/2 po
Material	Bronze
AMP	2A
Bearing Material	Stainless Steel
End Connection 1	4-Bolt Flanged
Fitting Size 1	2 in.
Horsepower	1/6 hp
Impeller Material	Noryl (30% Glass-Filled)
Maximum Feet of Head	0 - 16.8 ft.
Maximum Temperature	40 - 230F
Number of Poles	2
Phase	1 PH
Power Rating	125W
Pressure - Maximum	150 psi
Pump Motor Type	Dry
Pump Phase	1 PH
RPM	3400 RPM
Shaft Material	Stainless Steel
VAC at 60 Hz	120V
