ARM182212669

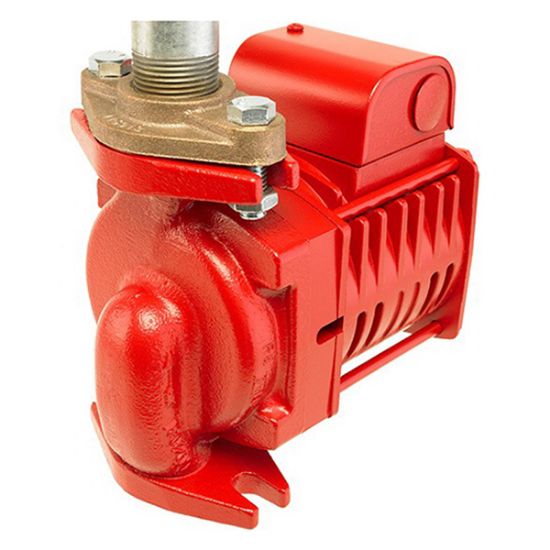

Armstrong E33.2 Cast Iron Circulating Pump, 120 VAC at 60Hz, 1 PH, 2/5 hp

Manufacturer: S.A. Armstrong

$0.00

Qty:

Circulating Pump, E.2 Series, Model: E33.2, 10.9 in. Length, 5.2 in. Width, 8-1/2 in. Height, Cast Iron, AMP: 5.7A, End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 2 in., Fitting Size 2: 2 in., 143 gpm US Flow Rate, Horsepower: 2/5 hp, Noryl Impeller, 26 ft. Maximum Feet of Head, 230F Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 150 psi, ODP Pump Motor Type, 3300 RPM, 120 VAC VAC at 60 Hz, 300W Power Rating, Stainless Steel Shaft Material, Stainless Steel Bearing Material, Number of Poles: 2 Additional Specifications

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10.9 in.
Width	5.2 in.
Height	8-1/2 po
Material	Cast Iron
AMP	5.7A
Bearing Material	Stainless Steel
End Connection 1	Flanged
End Connection 2	Flanged
Fitting Size 1	2 in.
Fitting Size 2	2 in.
Horsepower	2/5 hp
Impeller	Noryl
Maximum Feet of Head	26 ft.
Maximum Temperature	230F
Number of Poles	2
Phase	1 PH
Power Rating	300W
Power Source	Hardwired
Pressure - Maximum	150 psi
Pump Motor Type	ODP
RPM	3300 RPM
Shaft Material	Stainless Steel
VAC at 60 Hz	120 VAC
