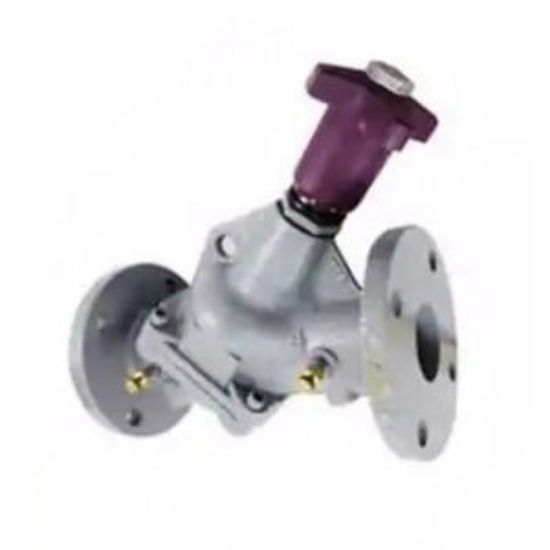

Picture of 570109376 CBV-21/2FS-125#FLG CIRC BALL V

570109376 CBV-21/2FS-125#FLG CIRC BALL V

S.A. Armstrong 570109-376 CBV Series 2-1/2 in. Flanged 125# Cast Iron Handwheel Y-Pattern Globe Style Straight Circuit Balancing Valve
Manufacturer: S.A. Armstrong
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Flow Rate 4.4 gpm
Length 12 in.
Material Cast Iron
Maximum Temperature 230
Pressure - Maximum 125 psi
Pressure Class 125#
Recommended Valve Application Water;Steam
Specifications - ASTM ASTM A-48 Class 30B;ASTM B-584-C84400;ASTM B-16;ASTM B-283-C37700
Style Name CBV Series
Valve Body Style Y-Pattern
Valve Disc Material Bronze
Valve Operator Hand Wheel
Valve Seat Material EPDM
Valve Size 2-1/2 in.
Valve Type Circuit Balancing Valve
Product Type Circuit Balancing Valves
Valve Body Material Cast Iron
