570109386 CBV-21/2GS GRV CIRC BV125/250#

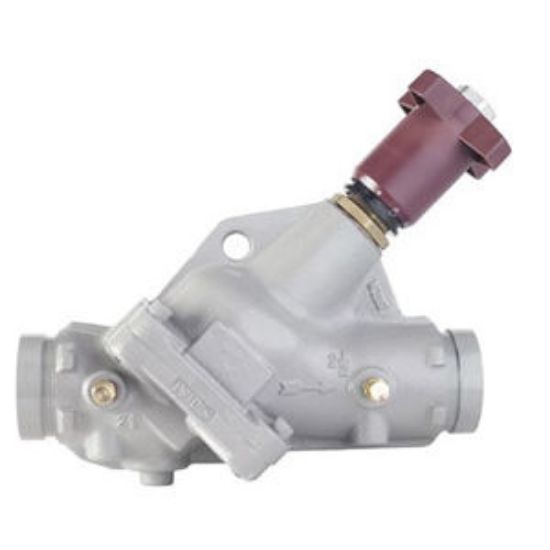

Armstrong CBV-2-1/2GS Ductile Iron Handwheel Y-Pattern Globe Style Straight Circuit Balancing Valve, 2-1/2 in., Grooved

Manufacturer: S.A. Armstrong

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12 in.
Material	Ductile Iron
Dimension	9.62 in. Inlet Centre to Top of Valve
End Connection 1	Grooved
End Connection 2	Grooved
Maximum Temperature	230F
Recommended Valve Application	Water, Steam
Specifications - ASTM	ASTM A-536 Grade 65-45-12, ASTM B-584 C-84400, ASTM B-16
Valve Body Style	Y-Pattern Globe, Grooved
Valve Disc Material	Bronze
Valve Operator	Hand Wheel
Valve Seal Material	Buna-N O-Ring
Valve Size	2-1/2 in.
Valve Stem Material	Brass
