570200477 FTV-3FA FLOTREX VV 125# ANG

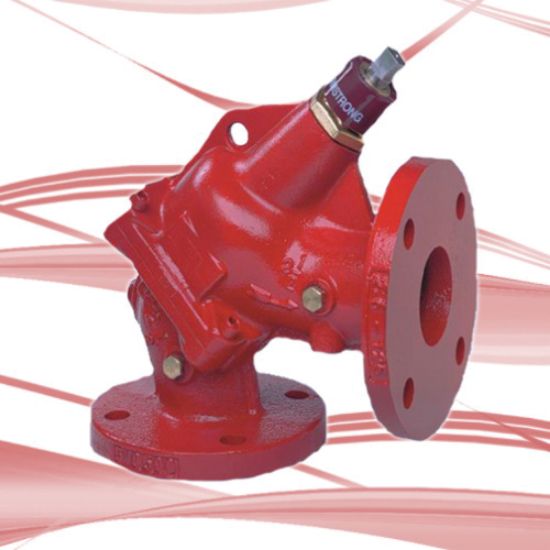

Armstrong FTV-3AF Cast Iron Angle Flo-Trex Valve, 3 in. Flanged, 125psig

Manufacturer: S.A. Armstrong

$0.00

Qty:

Angle Flo-Trex Valve, Model: FTV-3AF, 11.69 in. Width, 10.63 in. Height, Material: Cast Iron, End Connection 1: Flanged, End Connection 2: Flanged, Pressure - Maximum: 125psig, Valve Size: 3 in., Maximum - Temperature: 230F, Bronze Valve Disc, Stainless Steel Valve Stem, EPDM Valve Seat, Specifications - ASTM: ASTM A48 Class 30, ASTM B584-C84400, ASTM A582 Type 416, ASTM A313 Type 302, 7-1/2 in. Flange Outside Diameter

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	11.69 in.
Height	10.63 in.
Material	Cast Iron
End Connection 1	Flanged
End Connection 2	Flanged
Flange Outside Diameter	7-1/2 in.
Maximum Temperature	230F
Pressure - Maximum	125psig
Specifications - ASTM	ASTM A48 Class 30, ASTM B584-C84400, ASTM A582 Type 416, ASTM A313 Type 302
Valve Disc Material	Bronze
Valve Seat Material	EPDM
Valve Size	3 in.
Valve Stem Material	Stainless Steel
