BCB4JEH58

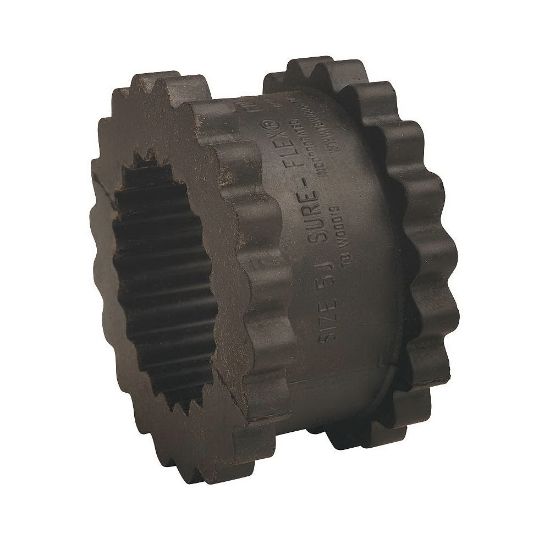

Sure Flex Plus 4JE58 EPDM Coupling Sleeve, #4, 1-1/4 in. L, 156 in-lbs, 7600 RPM

$0.00

Qty:

Sure Flex Plus Coupling Sleeve, 1-1/4 in. Length, 2.31 in. Width, 2.31 in. Height, Material: EPDM, Diameter - Outside 1: 2.31 in., Torque Capacity: 156 in-lbs, RPM: 7600 RPM, Horsepower: 4.3 hp at 1750 RPM, Maximum Angular Misalignment: 0.043 Degree, Maximum Parallel Misalignment: 0.01 in., Temperature Range: -30 to 275F, 5/8 in. Bore, Coupling Size: 4

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	1-1/4 in.
Width	2.31 in.
Height	2.31 in.
Material	EPDM
Bore Size	5/8 in.
Diameter - Outside 1	2.31 in.
Horsepower	4.3 hp at 1750 RPM
RPM	7600 RPM
Temperature Range	-30 to 275F
