BEG103400

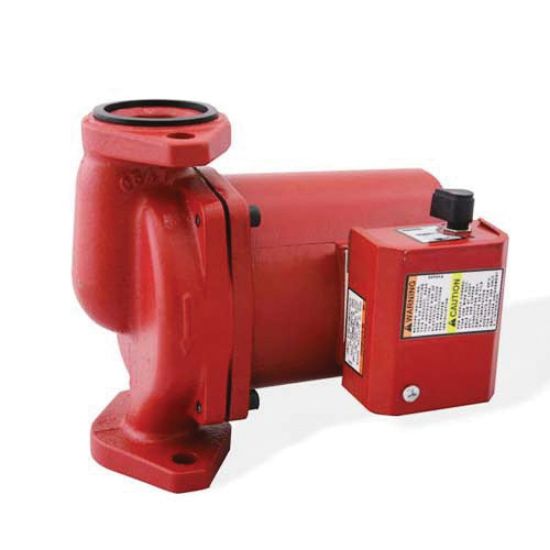

Bell & Gossett Red Fox NRF-36 Cast Iron Wet Rotor Circulator Pump, 115V at 60Hz, 1 PH, 1/6 hp

Manufacturer: Bell & Gossett

$0.00

Qty:

Red Fox Wet Rotor Circulator Pump, Model: NRF-36, 5-3/4 in. Length, 6-7/8 in. Width, 6-3/8 in. Height, Material: Cast Iron, AMP: 2.3A Full Load, End Connection 1: Flanged, Fitting Size 1: 3/4, 1, 1-1/4, 1-1/2 in., Flow Rate: 36 gpm, Horsepower: 1/6 hp, 34 ft. Maximum Head, Maximum Temperature: 225F, Phase: 1 PH, Pressure - Maximum: 150 psi, Pump Body Material: Cast Iron, RPM: 3300 RPM, Specifications - UL Listed: Yes, 115V at 60 Hz, Number of Speeds: 3, 60Hz Frequency Rating, Ceramic Shaft, Double Sintered Carbon Bearing, 270W Power Rating, Noryl Impeller

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-3/4 in.
Width	6-7/8 in.
Height	6-3/8 in.
Material	Cast Iron
AMP	2.3A Full Load
Bearing Material	Double Sintered Carbon
End Connection 1	Flanged
Fitting Size 1	3/4, 1, 1-1/4, 1-1/2 in.
Frequency Rating	60Hz
Horsepower	1/6 hp
Impeller Material	Noryl
Maximum Feet of Head	34 ft.
Maximum Temperature	225F
Phase	1 PH
Power Rating	270W
Pressure - Maximum	150 psi
Pump Body Material	Cast Iron
RPM	3300 RPM
Shaft Material	Ceramic
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
