BEG106192LF

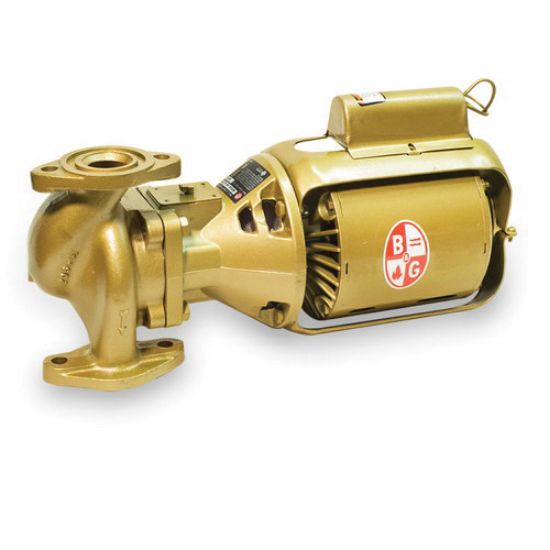

Bell & Gossett 106192LF Lead-Free Bronze In-Line Booster Pump, 115V at 60 Hz, 1 PH, 1/12 hp, 0 - 33 gpm

Manufacturer: Bell & Gossett

$0.00

Qty:

In-Line Booster Pump, 100 Series, 14-7/8 in. Length, 6-3/8 in. Height, Lead-Free Bronze, AMP: 1.75A, End Connection 1: Flanged, Fitting Size 1: 3/4, 1-1/4, 1-1/2, 1 in., 0 - 33 gpm Flow Rate, Horsepower: 1/12 hp, 0 - 8 ft. Maximum Feet of Head, 225F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 125 psi, Resilient Pump Mounting, 1 PH Pump Phase, 1725 RPM, 115V VAC at 60 Hz, Polypropylene Impeller Material, Carbon Steel Shaft Material

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	14-7/8 in.
Height	6-3/8 in.
Material	Lead-Free Bronze
AMP	1.75A
End Connection 1	Flanged
Fitting Size 1	3/4, 1-1/4, 1-1/2, 1 in.
Horsepower	1/12 hp
Impeller Material	Polypropylene
Maximum Feet of Head	0 - 8 ft.
Maximum Temperature	225F
Phase	1 PH
Pressure - Maximum	125 psi
Pump Mounting	Resilient
Pump Phase	1 PH
RPM	1725 RPM
Shaft Material	Carbon Steel
VAC at 60 Hz	115V
