NRF-22 IB BELL&GOSSET S-750 20 LITRE

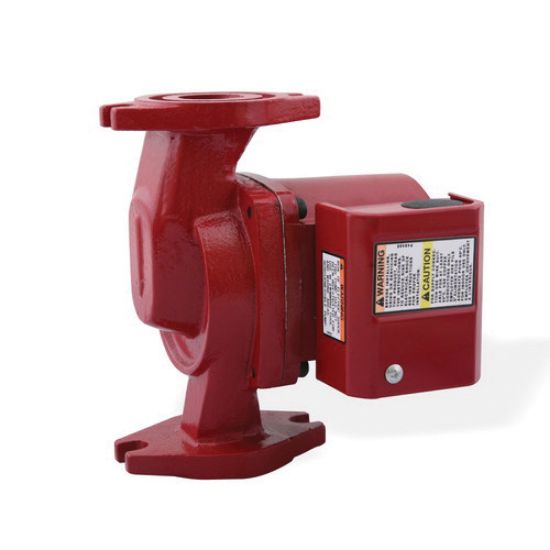

Bell & Gossett Red Fox NRF-22 Cast Iron Wet Rotor Circulator Pump, 115V at 60Hz, 1 PH, 1/25 hp

Manufacturer: Bell & Gossett

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-1/8 in.
Width	6-3/16 in.
Height	6-3/8 po
Material	Cast Iron
AMP	0.8A Full Load
Bearing Material	Double Sintered Carbon
End Connection 1	Flanged
Fitting Size 1	3/4, 1, 1-1/4, 1-1/2 in.
Frequency Rating	60Hz
Horsepower	1/25 hp
Impeller Material	Noryl
Maximum Feet of Head	15 ft.
Maximum Temperature	240F
Phase	1 PH
Power Rating	92W
Pressure - Maximum	150 psi
Pump Body Material	Cast Iron
RPM	2940 RPM
Shaft Material	Ceramic
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
