1BL001 1/6 HP IB CIRC L/FLG

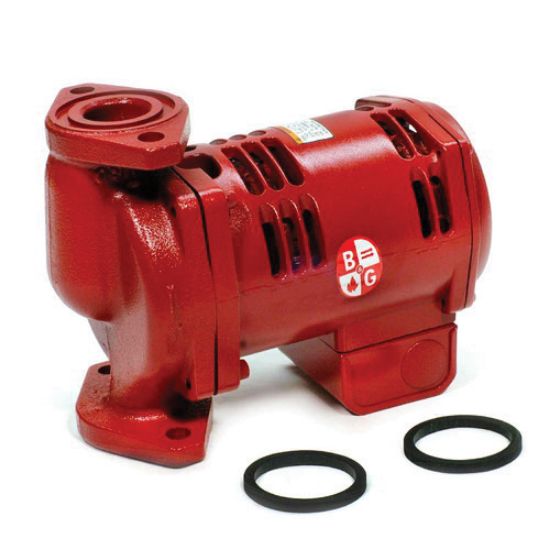

Bell & Gossett PL-36 Cast Iron Close-Coupled In-Line Booster Pump, 115V at 60 Hz, 1 PH, 1/6 hp, 0 - 40 gpm

Manufacturer: Bell & Gossett

$0.00

Qty:

Close-Coupled In-Line Booster Pump, PL Series, Model: PL-36, 8-5/8 in. Length, 4-3/8 in. Width, 6-3/8 in. Height, Cast Iron, AMP: 2.1A, End Connection 1: Flanged, Fitting Size 1: 3/4, 1-1/4, 1-1/2, 1 in., 0 - 40 gpm Flow Rate, Horsepower: 1/6 hp, 0 - 40 ft. Maximum Feet of Head, 225F Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 150 psi, ODP Pump Motor Type, 1 PH Pump Phase, 3300 RPM, Specifications - UL Listed: Yes, 115V VAC at 60 Hz, Noryl (30% Glass-Filled) Impeller Material, Carbon Steel Shaft Material, Steel Bearing Material

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	8-5/8 in.
Width	4-3/8 in.
Height	6-3/8 in.
Material	Cast Iron
AMP	2.1A
Bearing Material	Steel
End Connection 1	Flanged
Fitting Size 1	3/4, 1-1/4, 1-1/2, 1 in.
Horsepower	1/6 hp
Impeller Material	Noryl (30% Glass-Filled)
Maximum Feet of Head	0 - 40 ft.
Maximum Temperature	225F
Phase	1 PH
Pressure - Maximum	150 psi
Pump Motor Type	ODP
Pump Phase	1 PH
RPM	3300 RPM
Shaft Material	Carbon Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
