PL-55 B&G 2/5HP 115V IB CIRC PUMP L/FL

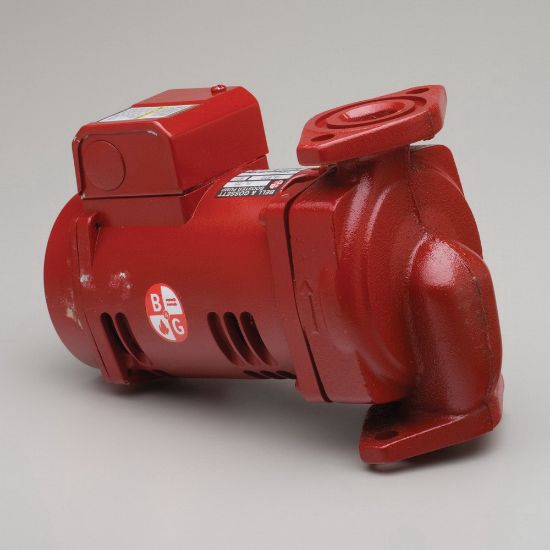

Bell & Gossett 1BL032 PL Series Lead Free 115V 2/5 hp Single Phase Circulator Pump, 3250 RPM, 3/4 in. x 1-1/4 in. NPT
Manufacturer: Bell & Gossett
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 4.7
End Connection NPT
End Connection 1 NPT
End Connection 2 NPT
Fitting Size 1 3/4 in.
Fitting Size 2 1 in.
Fitting Size 3 1-1/4 in.
Fitting Sizes 3/4 in. x 1 in. x 1-1/4 in.
Flow Rate 50 gpm
Height 6-3/8 in.
Horsepower 2/5 hp
Impeller Glass Filled PPS
Lead Law Compliant Yes
Length 9-9/16 in.
Material Cast Iron
Maximum Feet of Head 52
Maximum Temperature 225
Pressure - Maximum 150 psi
Pump Motor Type ODP
RPM 3250
Specifications - UL Listed Yes
Style Name PL Series
Volts 115V
Product Type Circulator Pumps
Phase Single Phase
Pump Mounting In-Line
