BELLF120S

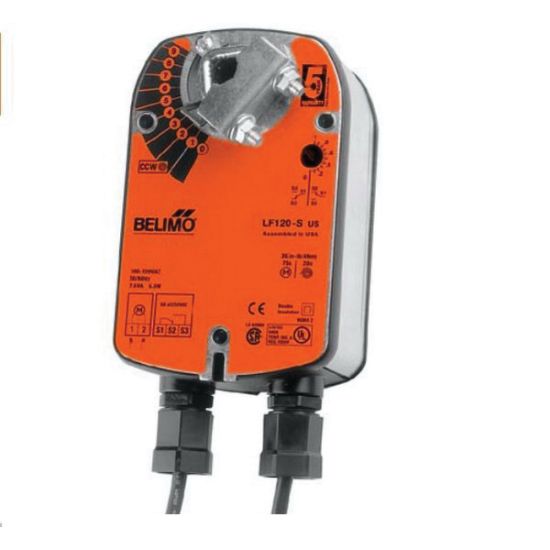

Belimo LF120-S Zinc-Plated Steel Housing Spring Return Damper Actuator, 120 VAC, On/Off SPDT
Spring Return Damper Actuator, LF Series, Material: Zinc-Plated Steel Housing, 120 VAC Volts, AMP: 3A (0.5A) at 250 VAC, 5.5W, 3.5W Watts, 7.5 VA Rating, 35 in-lbs Minimum Torque Rating, Timing: Less Than 40 - 75 sec. Motor, Less Than 25 sec. at -4 to 122F, Less Than 60 sec. at -22F Spring, Number of Auxiliary Switch: 1, 50/60Hz Frequency Rating, Control Signal: On/Off SPDT, Electrical Connection: (2) 3 ft., 18 ga Appliance Cables with 1/2 in. Conduit Connector, Shaft: 3/8 - 1/2 in. Round, Centers on 1/2 in., Humidity Range: 95% RH Maximum Non-Condensing, Temperature Rating: -22 to 122F, Noise Rating: Less Than 50 dBA Motor, 62 dBA Spring Return, NEMA 2, IP54 Housing Enclosure
