P++501T38A08 F/STEEL GATE VLV 800# 1/2

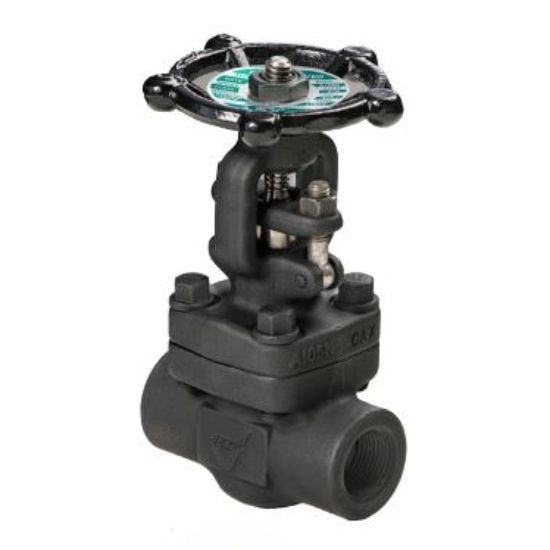

033-20009 501 Series 1/2 in. Threaded Forged Carbon Steel Handwheel Reduced Port 800# Gate Valve
Manufacturer: M.A. Stewart
$0.00
Beric Gate Valve, 501 Series, 3.11 in. Length, Forged Carbon Steel, End Connection 1: Threaded, Material Type: 410 SS, End Connection 2: Threaded, Specifications - ASTM: ASTM A-105N, ASTM A-276-410, ASTM A-197, Other Physical Dimensions: 6.2 in. Open x 5.51 in. Closed Inlet Centre to Top of Valve, 3.94 in. Wheel Diameter, Valve Operator: Hand Wheel, Valve Size: 1/2 in., Malleable Iron Handle, Stainless Steel Valve Stem, Die Formed GraphValve Packing, Specifications - ASME: ASME B1.20.1, ASME B16.34, Reduced Port Valve Port Opening, Pressure Class: 800#, Specifications - API: API 598, API 602, Bolted Valve Bonnet
Products specifications
products.specs.attributename products.specs.attributevalue
Material Forged Carbon Steel
Product Type Gate Valves
