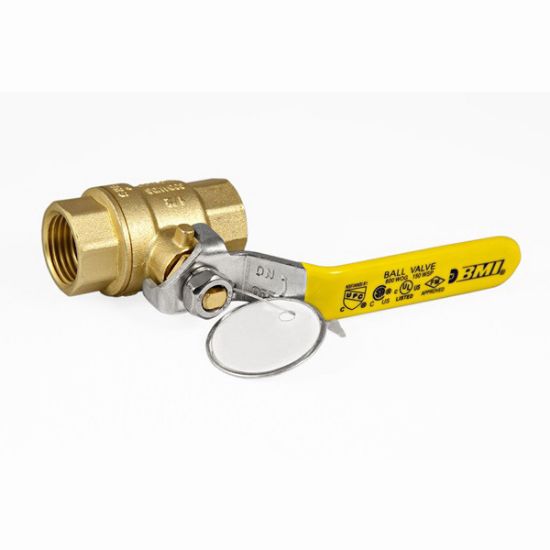

Picture of 13804 1/2 IPS BALL VLV 600FM,CSA,CUPC,CU

13804 1/2 IPS BALL VLV 600FM,CSA,CUPC,CU

BMI 13804 Forged Brass Handle Full Port Ball Valve, 1/2 in., Threaded
Manufacturer: BMI
$0.00
Ball Valve, Forged Brass, End Connection 1: Threaded, End Connection 2: Threaded, -20 to 300F Maximum - Temperature, Pressure - Maximum: 600 psi WOG (Non-Shock), Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, Valve Operator: Handle, Full Port Valve Port Opening, PTFE Valve Seat, Valve Size: 1/2 in., PTFE Valve Packing Material, Specifications - ANSI: ANSI B16.18, ANSI Z21.15/CGA 9.1 and CAN/CGA 3.16, Steel Handle, Specifications - ASME: ASME B16.33, ASME B16.44, FPM O-Ring Valve Seal, Specifications - ASTM: ASTM C-46500, Forged Brass Valve Stem, Specifications - FM Approved: Yes, Forged Brass Ball Valve Trim
Products specifications
products.specs.attributename products.specs.attributevalue
Material Forged Brass
End Connection 1 Threaded
End Connection 2 Threaded
Handle Material Steel
Maximum Temperature -20 to 300F
Pressure - Maximum 600 psi WOG (Non-Shock)
Specifications - ANSI ANSI B16.18, ANSI Z21.15/CGA 9.1 and CAN/CGA 3.16
Specifications - ASME ASME B16.33, ASME B16.44
Specifications - ASTM ASTM C-46500
Specifications - FM Approved Yes
Specifications - NSF NSF 61
Specifications - NSF Certified Yes
Specifications - UL Listed Yes
Valve Operator Handle
Valve Packing Material PTFE
Valve Port Opening Full Port
Valve Seal Material FPM O-Ring
Valve Seat Material PTFE
Valve Size 1/2 in.
Valve Stem Material Forged Brass
Valve Trim Material Forged Brass Ball
