BOSRVNB07075NL

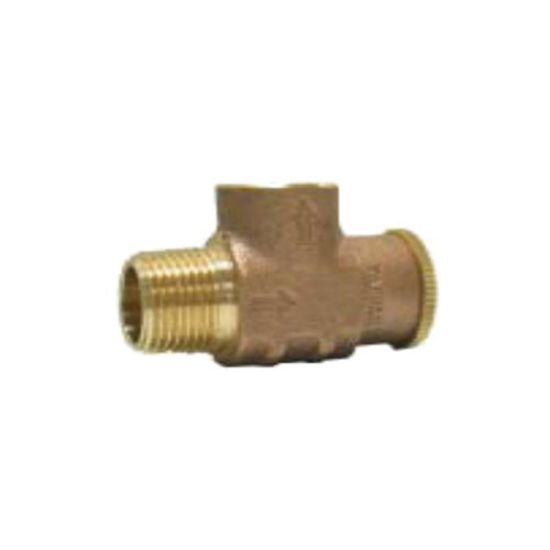

Boshart RVNB07-075NL Lead Free Brass Pressure Relief Valve, 3/4 x 1/2 in., MNPT x FNPT, 75 psi

Manufacturer: Boshart

$0.00

Qty:

Pressure Relief Valve, RVNB-NL Series, 1.44 in. Width, 2.45 in. Height, Brass, End Connection 1: MNPT, End Connection 2: FNPT, Fitting Size 2: 1/2 in., Lead Law Compliant: Yes, Maximum Temperature: 140F, Pressure - Maximum: 75 psi, Recommended Valve Application: Water, Specifications - ANSI: ANSI B1.20.1, Specifications - ASME: ASME B1.20.1, Buna-N Valve Disc, Brass Valve Seat, Valve Size: 3/4 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	1.44 in.
Height	2.45 in.
Material	Brass
End Connection 1	MNPT
End Connection 2	FNPT
Fitting Size 2	1/2 in.
Lead Law Compliant	Yes
Maximum Temperature	140F
Pressure - Maximum	75 psi
Recommended Valve Application	Water
Specifications - ANSI	ANSI B1.20.1
Specifications - ASME	ASME B1.20.1
Valve Disc Material	Buna-N
Valve Seat Material	Brass
Valve Size	3/4 in.
