Picture of BRPX14XCPEF 1/2NOM PEXX3/8OD STR VLV

BRPX14XCPEF 1/2NOM PEXX3/8OD STR VLV

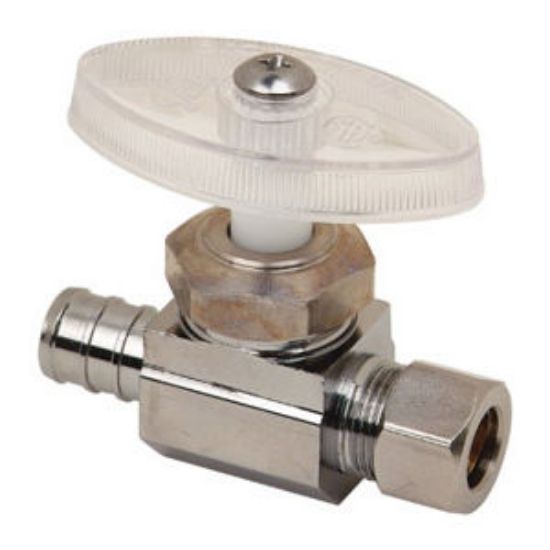

BrassCraft BRPX14X CPEF 1/2 in. x 3/8 in. Nom Crimp PEX Barb x O.D. Comp Brass Multi Turn Straight Stop Valve, Chrome
Manufacturer: BrassCraft
$0.00
This multi-turn straight stop valve is made of chrome-plated brass with a polycarbonate knurled oval handle and has a 1/2 inch Barbed PEX x 3/8 inch OD compression-reducing connection. It has an operating temperature ranging from 40 to 160 degrees Fahrenheit and a maximum pressure of 125 PSI. The 1-piece valve is lead law compliant, IAPMO listed and meets the ASME A112.18.1, CSA B125.1-11, F1807, F1960, ANSI/NSF 61 and ANSI/NSF 372 standards. It measures 1-67/100 inches centre to handle length, 2-19/100 inches face to face length and is suitable for use with PEX tubing and water distribution systems.
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Category Chromes
Colour/Finish Name Chrome
Lead Law Compliant Yes
Material Brass
Maximum Temperature 140F
Pressure - Maximum 125 psi
Specifications - ASME ASME A112.18.1
Specifications - CSA Certified CSA B125.1
Specifications - IAPMO Listed Yes
Product Type Supply Stop Valves
Depth 1 in.
End Connection PEX Barbed x Compression
End Connection 1 PEX Barbed
End Connection 2 Compression
Length 6-1/2 in.
Valve Size 1/2 in. x 3/8 in.
Valve Type Supply Stop Valve
Width 6-1/2 in.
Origin Canada
