Picture of N++ U514LF LLC 1/2" END STOP SHARKBITE

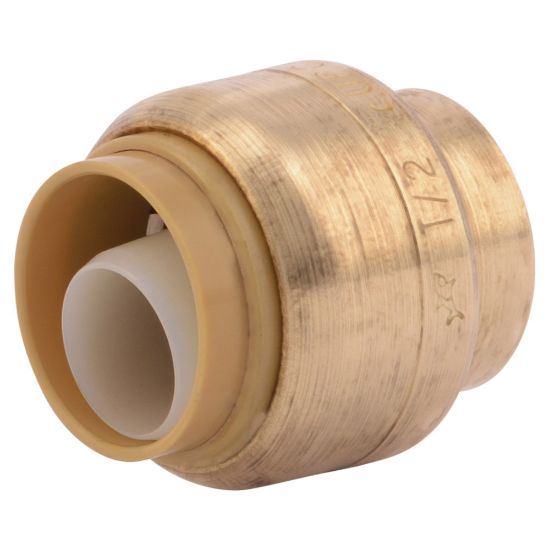

N++ U514LF LLC 1/2" END STOP SHARKBITE

SharkBite U514LF 1/2 in. Push-to-Connect DZR Brass Cap
Manufacturer: SharkBite
$0.00
This straight push cap is made of DZR lead-free brass and has a 1/2 inch Push-to-connect connection. It has a 1-4/5 inches length, an operating pressure of 200 PSI and an operating temperature of 200 degrees Fahrenheit. The durable corrosion-resistant cap features quick and easy installation/removal, an integral pipe liner for PEX installations, EPDM O-ring, stainless steel grab ring and polysulfone tube linear support. It is compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipes. The push cap is lead law compliant and IAPMO listed. It meets ANSI 61, ANSI 372, ASSE 1061, ASTM E-84, ASTM E-119, CSA B125.3, NSF 61/NSF 372 and UL 263 standards.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Push to Connect
End Connection 1 Push to Connect
Fitting Size 1 1/2 in.
Lead Law Compliant Yes
Length 1-4/5 in.
Material DZR Brass
Maximum Temperature 200
Pressure - Maximum 200 psi
Size 1/2 in.
Specifications - ANSI ANSI 61;ANSI 372
Specifications - ASSE Standards ASSE 1061
Specifications - ASTM ASTM E-84;ASTM E-119
Specifications - CSA Certified CSA B125.3
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 14;NSF 61;NSF 372
Specifications - NSF Certified Yes
Specifications - UL Listed UL 263
Product Type Brass Caps
Fitting Sizes 1/2 in.
