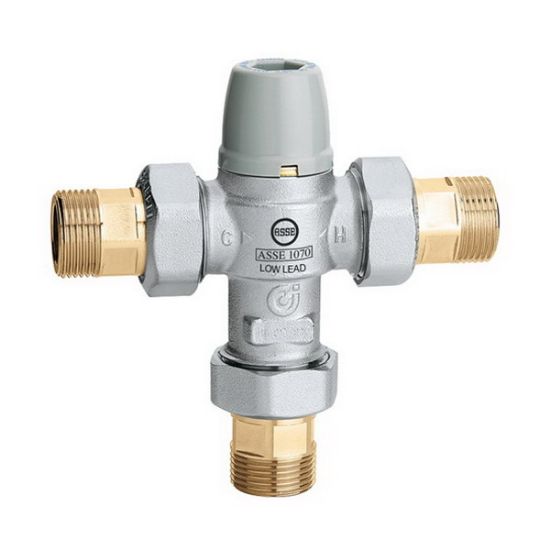

521342A 1/2" NPT MIXING VALVE

Caleffi 521342A Brass Thermostatic Mixing Valve, 1/2 in. NPT Union, 150 psi, 140 psi Static, 1.5 - 70 psi Dynamic

Manufacturer: Caleffi

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-11/16 in.
Height	4-15/16 in.
Material	Brass
End Connection 1	NPT Union
Flow Co-Efficient (Cv)	2
Lead Law Compliant	Yes
Maximum Temperature	185F Maximum Inlet, 85 - 120F Adjustable Range, 39 - 85F Cold Inlet, 120 - 185F Hot Inlet
Pressure - Maximum	150 psi, 140 psi Static, 1.5 - 70 psi Dynamic
Specifications - ASSE Standards	ASSE 1017
Valve Size	1/2 in.
