Z200617 1" NPT VALVE BODY 7.5

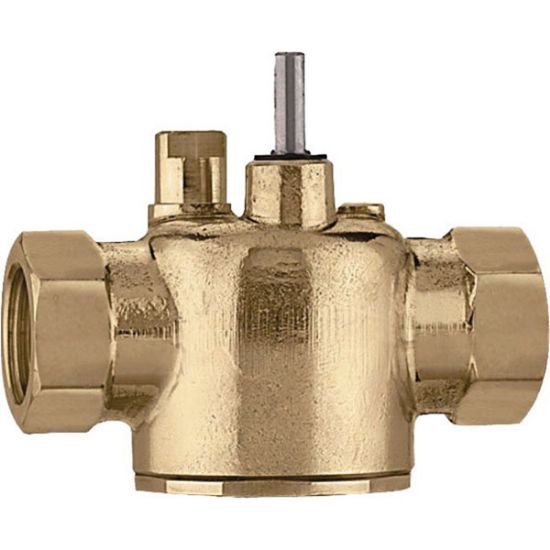

Caleffi Z-One Z200617 Forged Brass 2-Way Straight-Through Motorized Zone Valve Body, 1 in., FNPT, 300 psi, 15 psi Steam Static, 20 psi Close-Off

Manufacturer: Caleffi

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3-5/8 in.
Material	Forged Brass
Body Pattern	2-Way, Straight-Through
End Connection 1	FNPT
Environmental Conditions	95% Non-Condensing
Flow Co-Efficient (Cv)	7.5
Power Consumption	7 VA at 5W
Pressure - Maximum	300 psi, 15 psi Steam Static, 20 psi Close-Off
Temperature Range	32 - 240F, 32 - 170F Ambient
Valve Size	1 in.
