Z300617 3 WAY DIV VLV 1" NPT 7.5CV

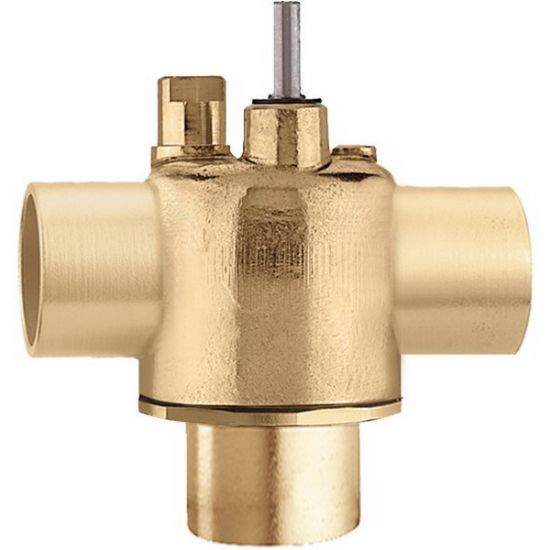

Caleffi Z300617 Forged Brass 3-Way Zone Valve, 1 in. Threaded, 24 VAC/120 VAC/208 VAC/230 VAC/277 VAC, 7.5 Cv, 50/60Hz, 20 psi

Manufacturer: Caleffi

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3-5/8 in.
Height	5-3/8 in.
Material	Forged Brass
AMP	300 mA at 24 VAC, 55 mA at 120 VAC, 30 mA at 208 VAC, 25 mA at 230 VAC, 20 mA at 277 VAC
Body Pattern	Diverting flow
Electrical Connection	18 in. Leadwire
End Connection 1	Threaded
Environmental Conditions	95% Non-Condensing
Flow Co-Efficient (Cv)	7.5
Frequency Rating	50/60Hz
Pressure - Maximum	20 psi
Temperature Range	32 - 240F
Valve Size	1 in.
Volts	24 VAC, 120 VAC, 208 VAC, 230 VAC, 277 VAC
