1 X 3/4 X 90 ELBOW STD BLACK C/I THRD

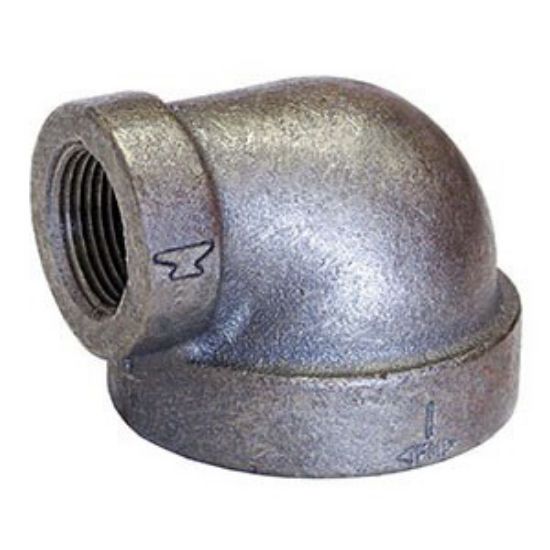

1" X 3/4" X 90 Degree Standard Black Cast Iron Elbow

$0.00

Qty:

Reducing Elbow, Model: 352, Cast Iron, 90 Degree Angle, Coating: Black, End Connection 1: FNPT, End Connection 2: FNPT, Fitting Size 1: 1 in., Fitting Size 2: 3/4 in., Pressure Class: 125#, STD Schedule, Specifications - ASME: ASME B16.4, ASME B1.20.1+, Specifications - ASTM: ASTM A-126 (A), Maximum Temperature: -20 to 150F, Pressure - Maximum: 175 psi, Other Physical Dimensions: 1-7/16 x 1-7/16 in. Centre to End

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Cast Iron
Angle	90 Degree
Coating	Black
End Connection 1	FNPT
End Connection 2	FNPT
Fitting Size 1	1 in.
Fitting Size 2	3/4 in.
Maximum Temperature	-20 to 150F
Pressure - Maximum	175 psi
Pressure Class	125#
Schedule	STD
Specifications - ASME	ASME B16.4, ASME B1.20.1+
Specifications - ASTM	ASTM A-126 (A)
