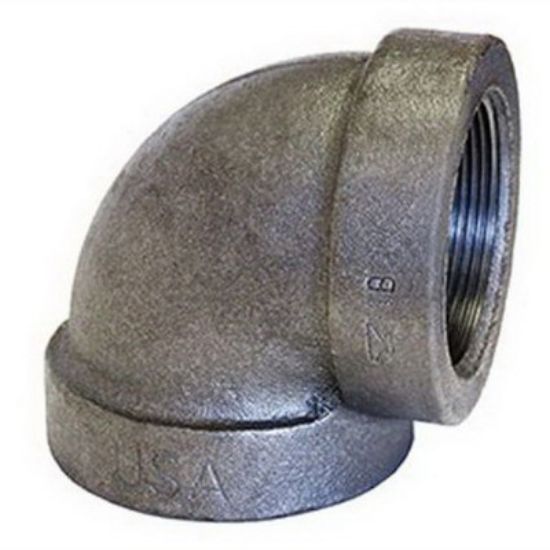

2-1/2 STD BLK CI 90 ELBOW

2-1/2" X 90 Degree Standard Black Cast Iron Elbow

$0.00

Qty:

Straight Elbow, Model: 351, Cast Iron, 90 Degree Angle, Coating: Black, End Connection 1: FNPT, End Connection 2: FNPT, Fitting Size 1: 2-1/2 in., Fitting Size 2: 2-1/2 in., 125# Pressure Class, STD Schedule, Specifications - ASME: ASME B16.4, ASME B1.20.1+, Specifications - ASTM: ASTM A-126 (A), -20 to 150F Maximum - Temperature, Pressure - Maximum: 175 psi, Other Physical Dimensions: 2-11/16 in. Centre to End, 6 Box, 288 Pallet Package Quantity

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Cast Iron
Angle	90 Degree
Coating	Black
End Connection 1	FNPT
End Connection 2	FNPT
Fitting Size 1	2-1/2 in.
Fitting Size 2	2-1/2 in.
Maximum Temperature	-20 to 150F
Package Quantity	6 Box, 288 Pallet
Pressure - Maximum	175 psi
Pressure Class	125#
Schedule	STD
Specifications - ASME	ASME B16.4, ASME B1.20.1+
Specifications - ASTM	ASTM A-126 (A)
