3" BLK CI FLGED 90-DEG ELB

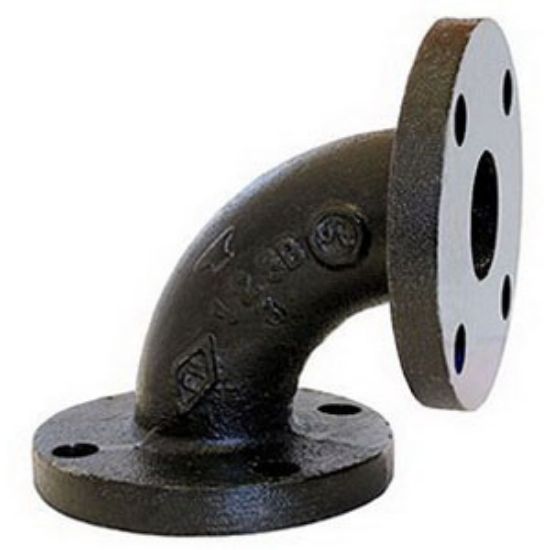

3" X 90 Degree Flanged Black Cast Iron Elbow

$0.00

Qty:

Elbow, Model: 801, Cast Iron, 90 Degree Angle, Coating: Black, End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 3 in., Fitting Size 2: 3 in., Pressure Class: 125#, STD Schedule, Specifications - ASME: ASME B16.1, Specifications - ASTM: ASTM A-126 (A) or (B), Maximum Temperature: -20 to 150F, Pressure - Maximum: 200 psi, 7-1/2 in. Flange Outside Diameter, 3/4 in. Flange Thickness, 3/8 in. Wall Thickness, Other Physical Dimensions: 5-1/2 in. Centre to End

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Cast Iron
Angle	90 Degree
Coating	Black
End Connection 1	Flanged
End Connection 2	Flanged
Fitting Size 1	3 in.
Fitting Size 2	3 in.
Flange Outside Diameter	7-1/2 in.
Flange Thickness	3/4 in.
Maximum Temperature	-20 to 150F
Pressure - Maximum	200 psi
Pressure Class	125#
Schedule	STD
Specifications - ASME	ASME B16.1
Specifications - ASTM	ASTM A-126 (A) or (B)
Wall Thickness	3/8 in.
