CIF90FL8

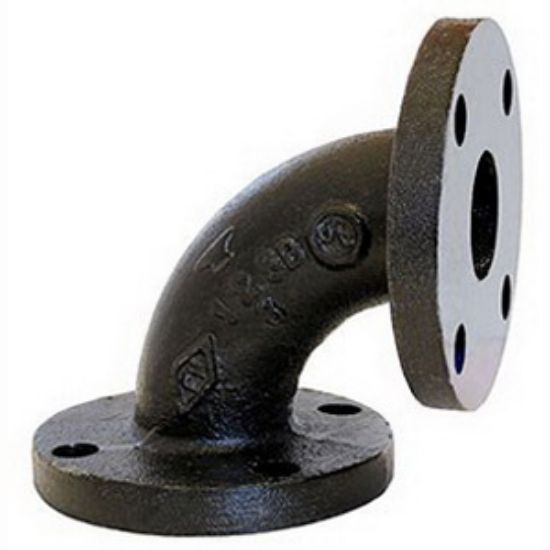

8" X 90 Degree Flanged Black Cast Iron Elbow

$0.00

Qty:

Straight Elbow, Model: 801, Cast Iron, 90 Degree Angle, Coating: Black, End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 8 in., Fitting Size 2: 8 in., 125# Pressure Class, STD Schedule, Specifications - ASME: ASME B16.1, ASME B1.20.1+, Specifications - ASTM: ASTM A-126 (A), -20 to 150F Maximum - Temperature, Pressure - Maximum: 200 psi, 13-1/2 in. Flange Outside Diameter, 1-1/8 in. Flange Thickness, 5/8 in. Wall Thickness, Other Physical Dimensions: 9 in. Centre to End

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Cast Iron
Angle	90 Degree
Coating	Black
End Connection 1	Flanged
End Connection 2	Flanged
Fitting Size 1	8 in.
Fitting Size 2	8 in.
Flange Outside Diameter	13-1/2 in.
Flange Thickness	1-1/8 in.
Maximum Temperature	-20 to 150F
Pressure - Maximum	200 psi
Pressure Class	125#
Schedule	STD
Specifications - ASME	ASME B16.1, ASME B1.20.1+
Specifications - ASTM	ASTM A-126 (A)
Wall Thickness	5/8 in.
