Picture of 1-1/2X5" BLK CI 125# THRD COMP FLG

1-1/2X5" BLK CI 125# THRD COMP FLG

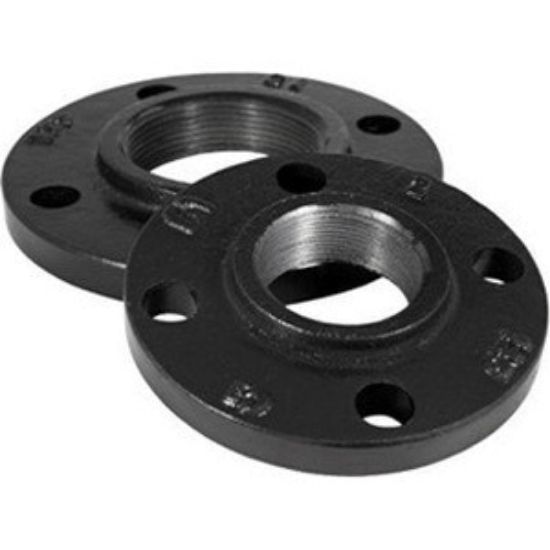

1-1/2" X 5" Standard Black Cast Iron Threaded Flange

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length Through Hub	7/8 in.
Hub Diameter	2-9/16 in.
Bolt Circle Diameter	3.88 in.
Number of Holes	4
Pressure Class	125#
Coating	Black
Specifications - ASME	ASME B16.1, ASME B1.20.1
Diameter - Outside 1	5 in.
Flange Thickness	9/16 in.
Fitting Size 1	1-1/2 in.
End Connection 1	FNPT
Material	Cast Iron
